Texas Instruments provides a recommended PCB layout in the UCC5880QDFCRQ1 evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
To ensure reliability in high-temperature applications, it is essential to follow the recommended operating conditions, including the maximum junction temperature (Tj) of 150°C. Additionally, proper thermal management, such as heat sinking and airflow, can help to reduce the junction temperature and prevent thermal shutdown.
When selecting input capacitors for the UCC5880QDFCRQ1, consider the capacitor's voltage rating, capacitance value, and equivalent series resistance (ESR). A low-ESR capacitor with a voltage rating greater than the maximum input voltage and a capacitance value that meets the recommended minimum value (typically 10uF) is recommended.
To troubleshoot issues with the UCC5880QDFCRQ1, start by verifying the input voltage, output voltage, and current levels. Check for proper component placement, routing, and thermal management. Use oscilloscopes and thermal imaging cameras to identify any anomalies. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
When using the UCC5880QDFCRQ1 in a design with a high-power output, consider the maximum output current and power dissipation ratings. Ensure that the device is properly heat-sunk and that the PCB is designed to handle the high current and thermal demands. Additionally, consider the output voltage ripple and noise requirements to ensure that the device meets the application's specifications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC5880QDFCRQ1 Overview

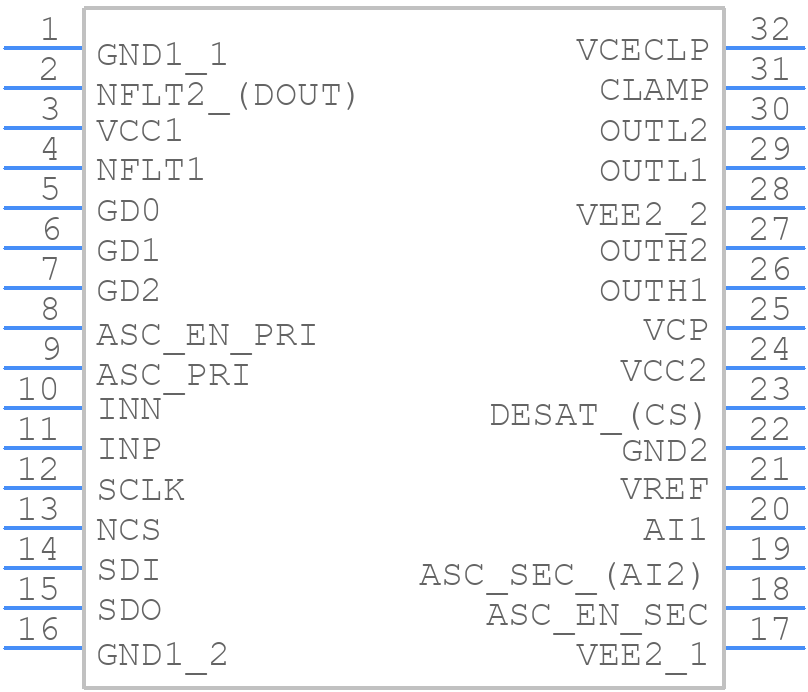

Use the download button to access the UCC5880QDFCRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC58,
or try a keyword search, such as MOSFET Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
