Texas Instruments provides a recommended PCB layout in the UCD3028RHAR evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management.
To optimize the UCD3028RHAR for low power consumption, use the Power Save Mode (PSM) feature, reduce the switching frequency, and minimize the number of active phases. Additionally, ensure that the input voltage is within the recommended range and use a high-efficiency output filter.
The maximum output current capability of the UCD3028RHAR depends on the specific application and the number of active phases. However, the device is designed to support up to 20A per phase, and the total output current can be scaled up to 80A or more by paralleling multiple phases.
To troubleshoot issues with the UCD3028RHAR, use the device's built-in fault monitoring and reporting features, such as the Fault pin and the I2C interface. Additionally, use oscilloscopes and current probes to monitor the device's input and output waveforms and currents.
Yes, the UCD3028RHAR can be used in non-isolated DC-DC converter designs, such as buck, boost, or buck-boost converters. However, the device's high-side and low-side FET drivers must be configured accordingly, and the output voltage and current ratings must be within the device's specifications.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
UCD3028RHAR Overview

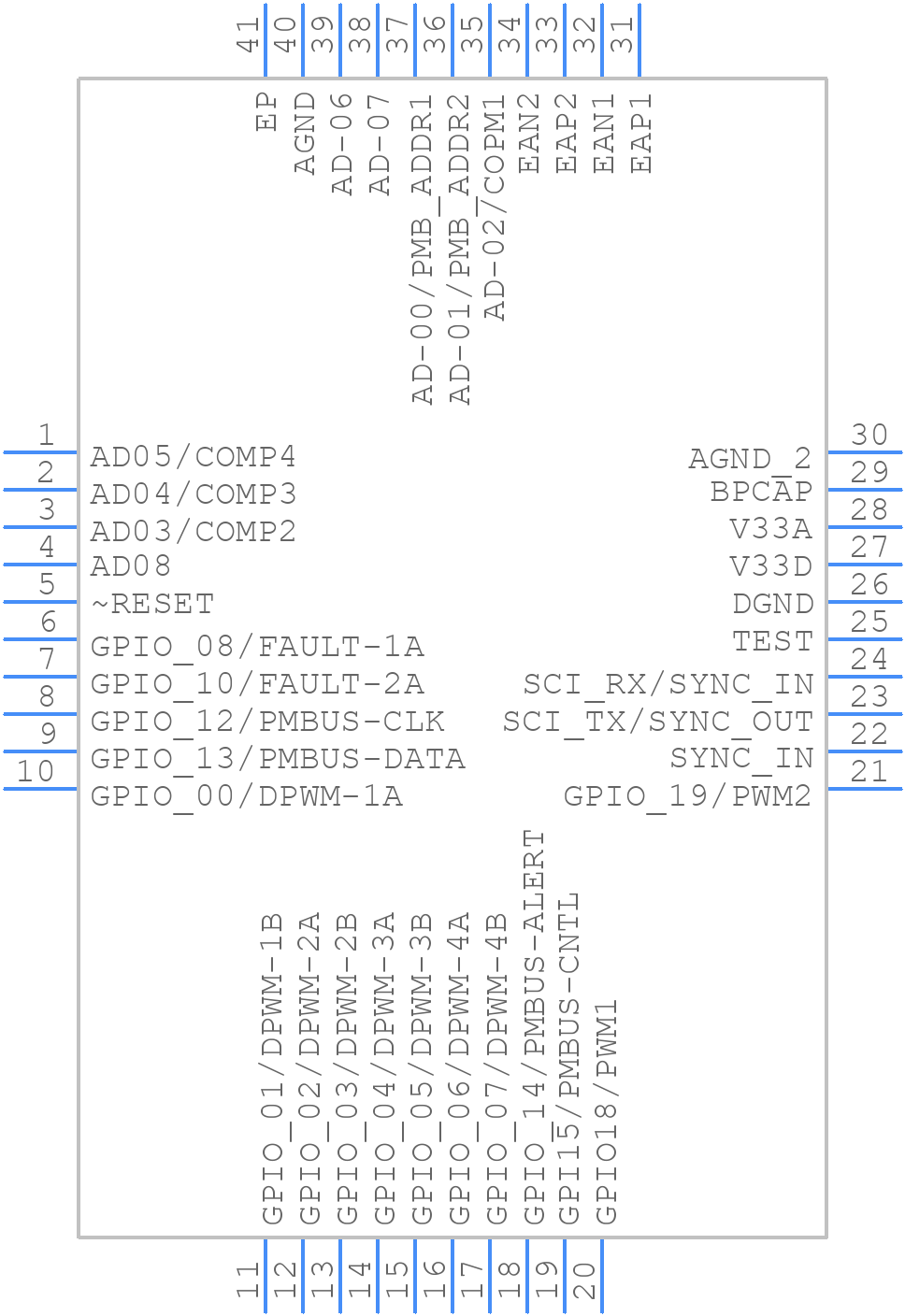

Use the download button to access the UCD3028RHAR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCD30,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
