UCD3040PFCR - Texas Instruments

Description: Fully Programmable Digital Power Controller with Four Feedback Loops and Eight DPWM Outputs

Download UCD3040PFCR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
UCD3040PFCR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

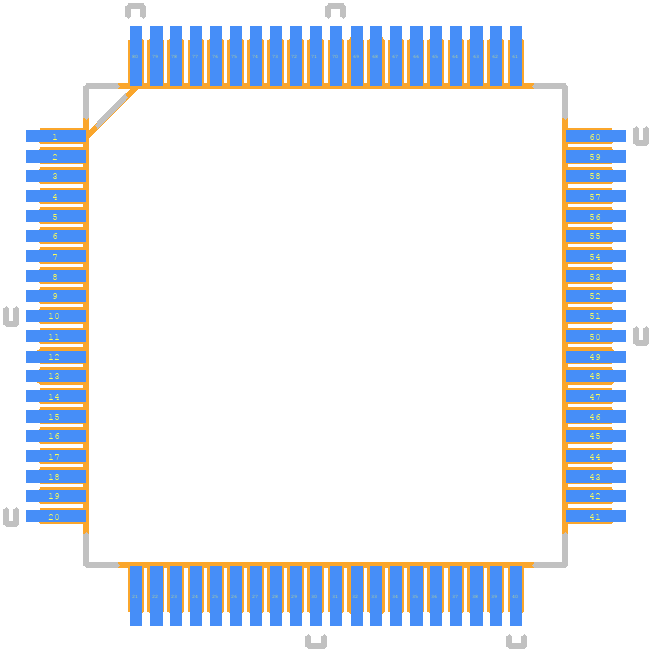

UCD3040PFCR - Texas Instruments PCB footprint - Other - Other - QFP50P1400X1400X120-80N
click to zoom
3D Models
UCD3040PFCR - Texas Instruments - 3D model - Other - QFP50P1400X1400X120-80N
click to zoom

UCD3040PFCR Details

  • Manufacturer Part Number:

    UCD3040PFCR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Pin Count:

    80

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.50

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT/VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    3.6 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    3.3 V

  • JESD-30 Code:

    S-PQFP-G80

  • JESD-609 Code:

    e4

  • Length:

    12 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    8

  • Number of Terminals:

    80

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFQFP

  • Package Equivalence Code:

    TQFP80,.55SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    80 mA

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    SINGLE

  • Switching Frequency-Max:

    2000 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    12 mm

UCD3040PFCR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the UCD3040PFCR evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The UCD3040PFCR datasheet provides guidelines for selecting external components such as the input filter, output filter, and feedback network components. Additionally, Texas Instruments offers a power designer tool that can help engineers select the optimal components for their specific application.
  • The UCD3040PFCR has an operating temperature range of -40°C to 125°C, but the maximum junction temperature (TJ) is 150°C. Engineers should ensure that the device is operated within the recommended temperature range to ensure reliability and prevent thermal shutdown.
  • The UCD3040PFCR has a built-in overcurrent protection (OCP) feature that can be enabled by connecting the OCP pin to a resistor and capacitor network. The OCP threshold can be programmed by adjusting the value of the resistor and capacitor. Engineers should refer to the datasheet and application notes for more information on implementing OCP.
  • Yes, the UCD3040PFCR is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive applications and is also suitable for industrial and medical applications that require high reliability.
