Texas Instruments provides a recommended PCB layout in the UCD7232RTJR datasheet (section 10.2) and in the UCD7232RTJR Evaluation Module User's Guide (section 4.1). It's essential to follow these guidelines to ensure optimal thermal performance and minimize thermal resistance.
The input capacitors should be selected based on the input voltage, current, and frequency. A minimum of 10uF ceramic capacitor with an X7R or X5R dielectric is recommended. The capacitor should be placed as close as possible to the VIN pin to minimize noise and ensure stability.
The UCD7232RTJR can deliver up to 3A of output current. However, the actual output current capability depends on the input voltage, output voltage, and thermal conditions. It's essential to ensure the device is operated within the recommended operating conditions to avoid overheating and ensure reliability.
The output voltage of the UCD7232RTJR can be configured using the FB pin and an external resistor divider network. The datasheet provides a formula to calculate the required resistor values for a specific output voltage. Additionally, the UCD7232RTJR Evaluation Module User's Guide provides a detailed example of how to configure the output voltage.
The EN (Enable) pin is used to enable or disable the UCD7232RTJR. When the EN pin is pulled high, the device is enabled, and when it's pulled low, the device is disabled. The EN pin can be used to implement power sequencing, shutdown, or low-power modes in the system.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCD7232RTJR Overview

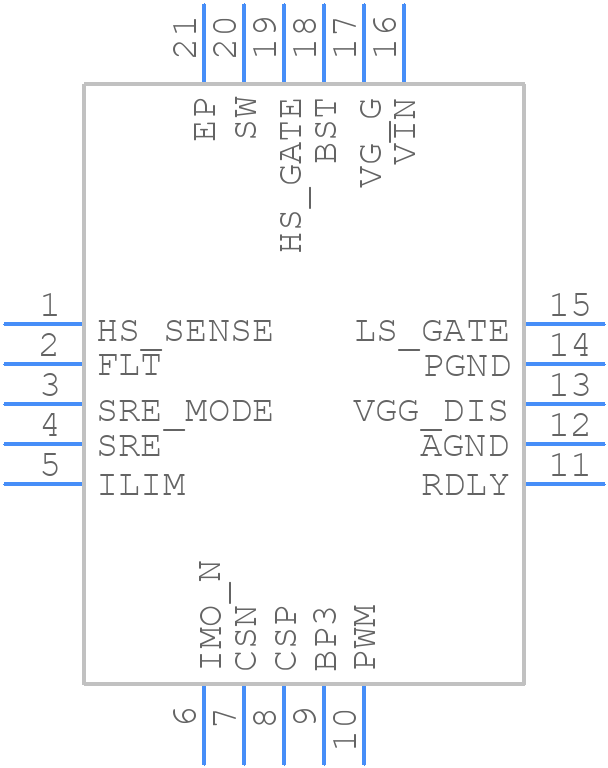

Use the download button to access the UCD7232RTJR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCD72,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
