A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good airflow around the device. The datasheet provides some guidelines, but a more detailed application note from TI provides additional recommendations.
To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, including voltage and current ratings. Additionally, consider using thermal management techniques such as heat sinks or thermal interfaces to keep the device within its specified temperature range.
Using a different voltage regulator output capacitor value than recommended may affect the stability and transient response of the regulator. It's essential to follow the recommended capacitor values and types to ensure optimal performance and stability.
To troubleshoot issues with the device, start by checking the input voltage, output voltage, and current consumption. Verify that the device is operated within its specified ratings and that the PCB layout is correct. Use oscilloscopes or logic analyzers to capture waveforms and debug the issue.
Yes, the UCD74111RVFT is a high-frequency device, and EMI/EMC considerations are crucial. Follow proper PCB layout and shielding techniques, and ensure that the device is placed in a shielded area to minimize electromagnetic interference.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCD74111RVFT Overview

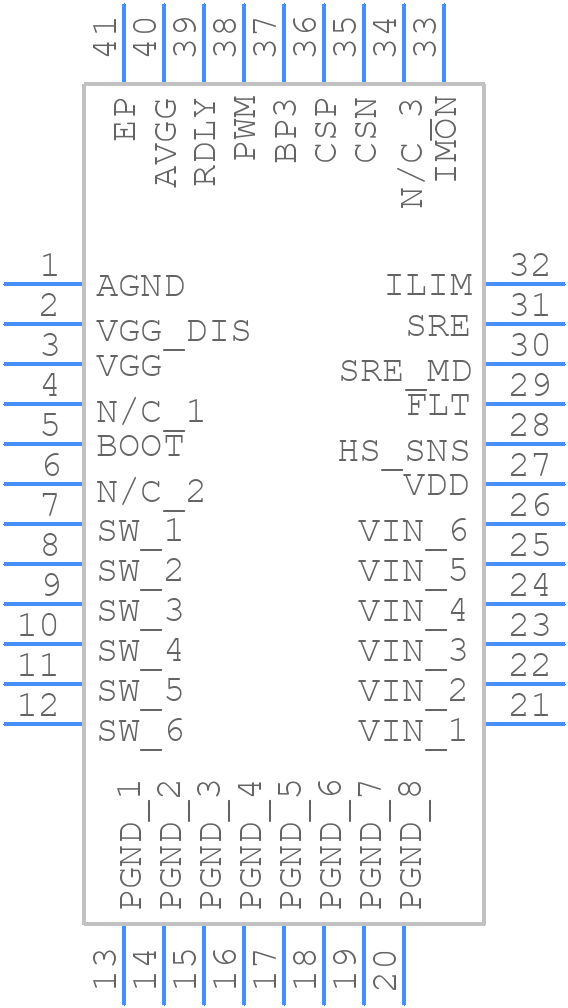

Use the download button to access the UCD74111RVFT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCD74,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
