UCD74120RVFT - Texas Instruments

Description: 14 V, 25 A synchronous buck power stage with output current monitoring

Download UCD74120RVFT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

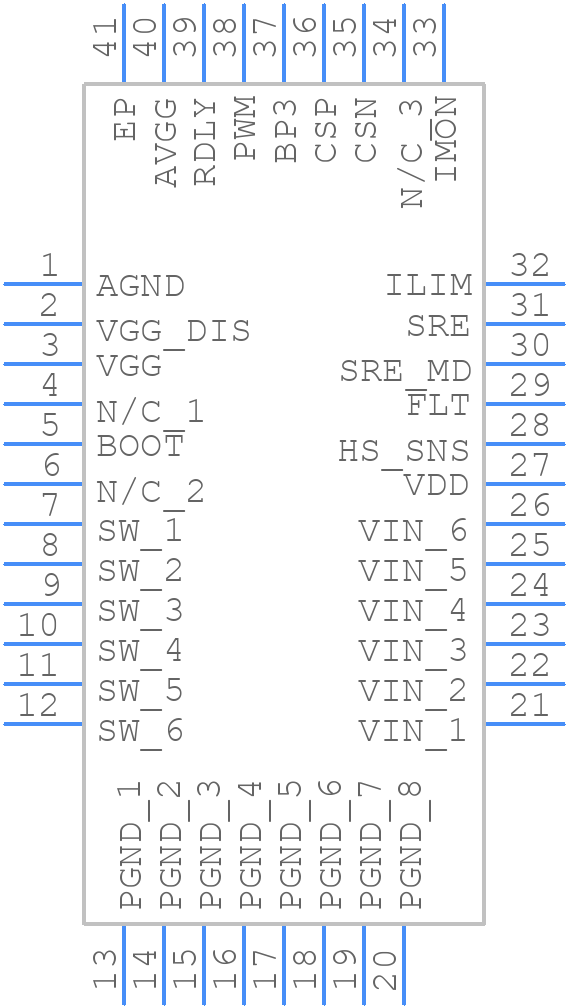

Symbol
UCD74120RVFT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
UCD74120RVFT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RVF0040A
click to zoom
3D Models
UCD74120RVFT - Texas Instruments - 3D model - Quad Flat No-Lead - RVF0040A
click to zoom

UCD74120RVFT Details

  • Manufacturer Part Number:

    UCD74120RVFT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    14 V

  • Input Voltage-Min:

    4.7 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PQCC-N40

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    25 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HQCCN

  • Package Equivalence Code:

    LCC40,.2X.28,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.52 mm

  • Supply Voltage-Max (Vsup):

    14 V

  • Supply Voltage-Min (Vsup):

    4.7 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2000 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

UCD74120RVFT Frequently Asked Questions (FAQs)

  • TI recommends a 4-layer PCB with a solid ground plane on the bottom layer, and a thermal relief pattern on the top layer to minimize thermal resistance. A thermal via array under the device can also improve heat dissipation.
  • Ensure that the device is properly decoupled, and that the power supply is stable and well-regulated. Also, consider using a thermistor or thermocouple to monitor the device temperature and adjust the operating conditions accordingly.
  • Choose capacitors with low ESR, high ripple current rating, and a voltage rating that exceeds the maximum output voltage. X5R or X7R ceramic capacitors are recommended. Avoid using electrolytic capacitors due to their high ESR and limited lifespan.
  • Use the TI-provided compensation calculator or consult the application note (SLVA477) for guidance on designing the compensation network. The goal is to achieve a stable, high-bandwidth response with minimal ringing and overshoot.
  • High ambient temperatures can reduce the device's reliability and lifespan. Ensure proper airflow, consider using a heat sink, and derate the device's output current accordingly to prevent overheating.
