UCD9224RGZT - Texas Instruments

Description: Texas Instruments UCD9224RGZT, PWM Controller 2 MHz, 3 → 3.6 V, 48-Pin QFN

Download UCD9224RGZT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

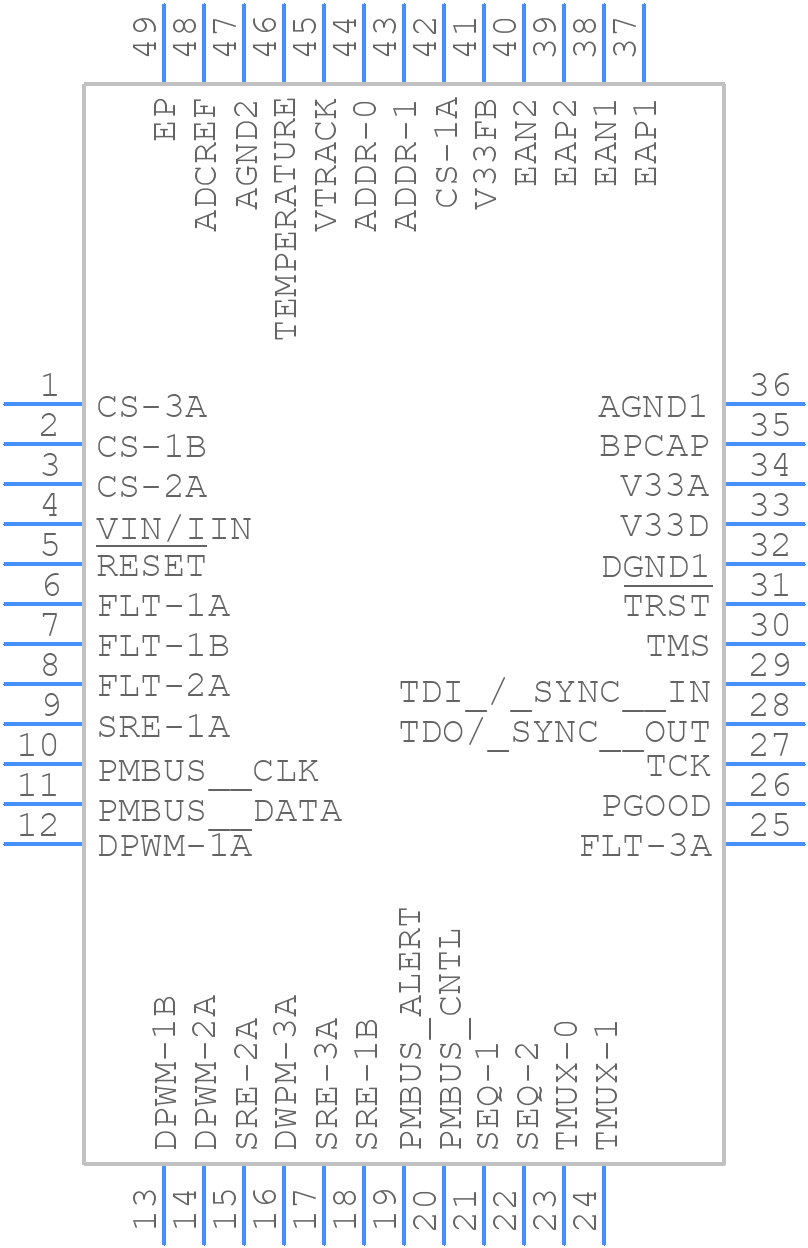

Symbol
UCD9224RGZT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
UCD9224RGZT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UCD9224RGZT
click to zoom
3D Models
UCD9224RGZT - Texas Instruments - 3D model - Quad Flat No-Lead - UCD9224RGZT
click to zoom

UCD9224RGZT Details

  • Manufacturer Part Number:

    UCD9224RGZT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    48

  • Country Of Origin:

    Malaysia, Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    3.6 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    3.3 V

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    55 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    SINGLE

  • Switching Frequency-Max:

    2000 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

UCD9224RGZT Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the power and ground planes as close as possible to minimize inductance. Use a 10-20 mil wide trace for the output voltage and a 5-10 mil wide trace for the input voltage.
  • Use a high-quality output capacitor with low ESR (Equivalent Series Resistance) and a high-frequency ceramic capacitor in parallel to filter out high-frequency noise. Also, ensure the output voltage sense lines are connected close to the output capacitor to minimize noise and voltage drops.
  • A 10-22uF ceramic capacitor with an X5R or X7R dielectric is recommended for the input capacitor. This type of capacitor provides a low ESR and is suitable for high-frequency switching converters.
  • Use a shielded inductor, keep the switching node (SW) as short as possible, and use a common-mode choke to reduce EMI. Also, ensure the PCB layout is compact and the components are placed to minimize loop areas.
  • The UCD9224RGZT is rated for operation up to 85°C ambient temperature. However, for reliable operation, it's recommended to keep the ambient temperature below 70°C to ensure the internal junction temperature remains within the specified range.
