2.10 X 1.60 MM, 0.58 MM HEIGHT, ROHS COMPLIANT, SLP2116P8, 8 PIN
Pin Count:
8
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8541.10.00.50
Factory Lead Time:
4 Weeks
Manufacturer:
Semtech Corporation
YTEOL:
6.28
Breakdown Voltage-Min:
6 V
Clamping Voltage-Max:
12.5 V
Configuration:
COMMON ANODE, 4 ELEMENTS
Diode Element Material:
SILICON
Diode Type:
TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 Code:
R-PDSO-C8
JESD-609 Code:
e4
Moisture Sensitivity Level:
1
Non-rep Peak Rev Power Dis-Max:
240 W
Number of Elements:
4
Number of Terminals:
8
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Polarity:
UNIDIRECTIONAL
Qualification Status:
Not Qualified
Rep Pk Reverse Voltage-Max:
5 V
Surface Mount:
YES
Technology:
AVALANCHE
Terminal Finish:
NICKEL PALLADIUM GOLD
Terminal Form:
C BEND
Terminal Position:
DUAL
UCLAMP0524P.TCT Frequently Asked Questions (FAQs)
A good PCB layout for the UCLAMP0524P.TCT involves keeping the input and output traces as short as possible, using a solid ground plane, and placing the device close to the protected circuit. Additionally, it's recommended to use a common ground point for the input and output grounds.
The UCLAMP0524P.TCT is designed to handle high surge currents and can withstand up to 3A of surge current for 100ns. It's also designed to meet the IEC 61000-4-5 standard for surge immunity.
The response time of the UCLAMP0524P.TCT is typically around 1ns, which is fast enough to protect the circuit from most ESD and surge events. This fast response time ensures that the protected circuit is not damaged by the surge or ESD event.
Yes, the UCLAMP0524P.TCT can be used in high-frequency applications and is designed to handle frequencies up to 6GHz. However, the device's performance may degrade at higher frequencies, so it's recommended to consult the datasheet and application notes for specific guidance.
The UCLAMP0524P.TCT is designed to have minimal impact on the signal integrity of the protected circuit. It has a low capacitance of 0.5pF and a low insertion loss of 0.5dB, making it suitable for high-speed applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCLAMP0524P.TCT Overview

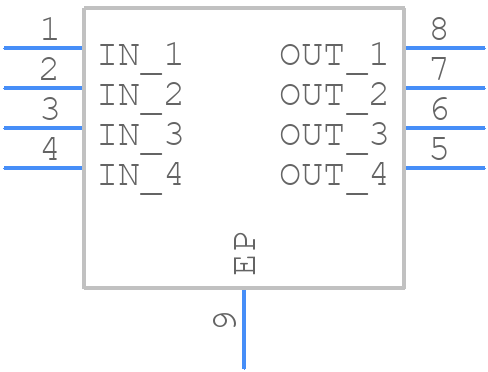

Use the download button to access the UCLAMP0524P.TCT schematic symbol and PCB footprint.
