A good PCB layout for the UCLAMP3324P.TCT involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
To ensure proper biasing, connect the VCC pin to a stable 3.3V power supply, and the GND pin to a solid ground plane. The input voltage should be within the recommended range of 0.8V to 3.3V. Additionally, ensure that the input signal is properly terminated and that the output is properly loaded.
The UCLAMP3324P.TCT is designed to operate up to 3.2 GHz, but the actual operating frequency may be limited by the specific application and PCB layout. It's recommended to consult the datasheet and application notes for more information.
The UCLAMP3324P.TCT has built-in ESD protection, but it's still important to follow proper ESD handling procedures when handling the device. Use an ESD wrist strap or mat, and ensure that the device is stored in an ESD-safe environment.
The thermal resistance of the UCLAMP3324P.TCT package is typically around 30°C/W. This means that for every watt of power dissipated, the junction temperature will increase by 30°C. Proper thermal management is essential to ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCLAMP3324P.TCT Overview

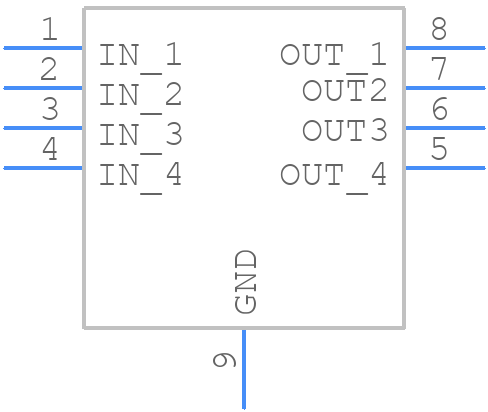

Use the download button to access the UCLAMP3324P.TCT schematic symbol and PCB footprint.
