Part Image

UCQ1A220MCL1GB - Nichicon

Description: Aluminum Electrolytic Capacitors - SMD 10V 22uf 20% Audio-SMT

Download UCQ1A220MCL1GB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
UCQ1A220MCL1GB - Nichicon - PCB symbol
click to zoom
PCB Footprints

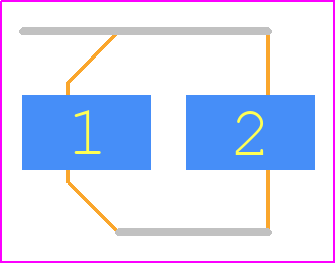

UCQ1A220MCL1GB - Nichicon PCB footprint - Capacitor Al Electrolytic - Capacitor Al Electrolytic - 5x4.5
click to zoom
3D Models
UCQ1A220MCL1GB - Nichicon - 3D model - Capacitor Al Electrolytic - 5x4.5
click to zoom

UCQ1A220MCL1GB Details

  • Manufacturer Part Number:

    UCQ1A220MCL1GB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Not Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    7

  • Capacitance:

    22 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    5 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • Height:

    4.5 mm

  • JESD-609 Code:

    e4

  • Leakage Current:

    0.003 mA

  • Length:

    5.3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Style:

    SMT

  • Packing Method:

    TR, 15 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    10 V

  • Reference Standard:

    AEC-Q200

  • Ripple Current:

    30 mA

  • Size Code:

    2121

  • Surface Mount:

    YES

  • Tan Delta:

    0.26

  • Terminal Finish:

    Silver (Ag)

  • Terminal Shape:

    FLAT

  • Width:

    5.3 mm

UCQ1A220MCL1GB Frequently Asked Questions (FAQs)

  • Nichicon recommends a voltage derating of 80% or less for this capacitor to ensure reliable operation and prevent overheating.
  • The ESR of the UCQ1A220MCL1GB capacitor decreases with increasing frequency, but the exact values can be obtained from Nichicon's application notes or by contacting their technical support.
  • While the UCQ1A220MCL1GB capacitor is a high-quality component, it may not meet the specific requirements for high-reliability applications. Engineers should consult Nichicon's documentation and relevant industry standards to determine suitability.
  • The UCQ1A220MCL1GB capacitor has a maximum operating temperature of 105°C, but its performance and lifespan may be affected at high temperatures. Engineers should consider derating the voltage and current ratings accordingly.
  • The capacitance of the UCQ1A220MCL1GB capacitor decreases with increasing temperature, following a typical ceramic capacitor temperature coefficient. The exact values can be obtained from Nichicon's application notes or by contacting their technical support.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

UCQ1A220MCL1GB Overview

Use the download button to access the UCQ1A220MCL1GB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCQ1A, or try a keyword search, such as Aluminum Electrolytic Capacitors
