UCQ1V220MCL1GB - Nichicon

Description: UCQ1V220MCL1GB

Download ECAD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

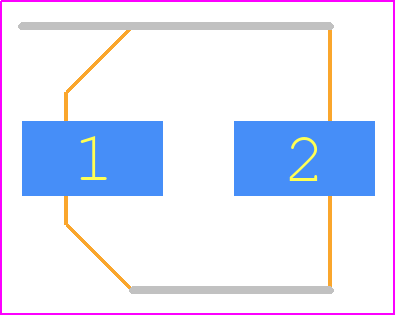

UCQ1V220MCL1GB - Nichicon PCB footprint - Capacitor Al Electrolytic - Capacitor Al Electrolytic - 6.3*4.5
click to zoom

3D Models

UCQ1V220MCL1GB - Nichicon  - 3D model - Capacitor Al Electrolytic - 6.3*4.5
click to zoom

UCQ1V220MCL1GB Details

  • Manufacturer Part Number:

    UCQ1V220MCL1GB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    , 2626

  • Reach Compliance Code:

    compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Manufacturer:

    Nichicon Corporation

  • Risk Rank:

    7.66

  • Samacsys Modified On:

    2020-07-11 06:26:25

  • YTEOL:

    7.73

  • Capacitance:

    22 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    6.3 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • Height:

    4.5 mm

  • JESD-609 Code:

    e4

  • Leakage Current:

    0.0077 mA

  • Length:

    6.6 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Style:

    SMT

  • Packing Method:

    TR, 15 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    35 V

  • Reference Standard:

    AEC-Q200

  • Ripple Current:

    40 mA

  • Size Code:

    2626

  • Surface Mount:

    YES

  • Tan Delta:

    0.13

  • Terminal Finish:

    SILVER

  • Terminal Shape:

    FLAT

  • Width:

    6.6 mm

Trust Checks

Expert Contribution
System Verified
Community Approved
Sponsored

UCQ1V220MCL1GB Overview

Use the download button to access the UCQ1V220MCL1GB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCQ1V, or try a keyword search, such as Ceramic Capacitors
