UCS1001-3-BP - Microchip

Description: USB Dedicated Charging Port (DCP), Power Switch PMIC 20-QFN (4x4)

Download UCS1001-3-BP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

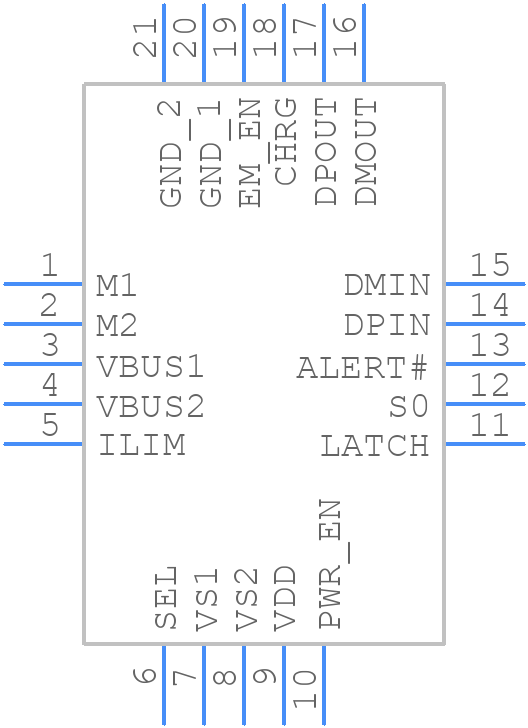

Symbol
UCS1001-3-BP - Microchip - PCB symbol
click to zoom
PCB Footprints
UCS1001-3-BP - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 20 pin QFN 4mm x 4mm
click to zoom
3D Models
UCS1001-3-BP - Microchip - 3D model - Quad Flat No-Lead - 20 pin QFN 4mm x 4mm
click to zoom

UCS1001-3-BP Details

  • Manufacturer Part Number:

    UCS1001-3-BP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    20

  • Manufacturer Package Code:

    QFN-20

  • Country Of Origin:

    Taiwan, Thailand

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    POWER SUPPLY SUPPORT CIRCUIT

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.9 mm

  • Supply Current-Max (Isup):

    0.75 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

UCS1001-3-BP Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the high-frequency traces short and away from the edges of the board. Use a common mode choke and a ferrite bead to filter the input power.
  • Use a reliable communication protocol such as SPI or I2C, and ensure that the clock frequency is within the recommended range. Also, use a pull-up resistor on the SDA line and a pull-down resistor on the SCL line for I2C communication.
  • The UCS1001-3-BP can operate from -40°C to +125°C, but the maximum junction temperature should not exceed 150°C. Ensure proper thermal management to prevent overheating.
  • Use a capacitor on the VCC pin to ensure a clean power-on reset. For brown-out reset, use a voltage supervisor or a reset IC to detect voltage drops and reset the system accordingly.
  • Use a 10uF ceramic capacitor and a 100nF ceramic capacitor in parallel, placed close to the VCC pin. This will help filter out noise and ensure stable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

UCS1001-3-BP Overview

Use the download button to access the UCS1001-3-BP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCS10, or try a keyword search, such as Power Management Circuits
