A good PCB layout for the UCS1002-1-BP-TR involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
To ensure proper powering and decoupling of the UCS1002-1-BP-TR, use a high-quality power supply with low ripple and noise, and add decoupling capacitors (e.g., 10uF and 100nF) close to the device. Also, ensure that the power supply voltage is within the recommended range of 2.7V to 5.5V.
The UCS1002-1-BP-TR can operate up to 100 kHz, but the maximum frequency of operation depends on the specific application and the quality of the PCB layout. In general, it's recommended to operate the device at a frequency below 50 kHz to ensure reliable operation.
To troubleshoot issues with the UCS1002-1-BP-TR, start by checking the power supply voltage and ensuring it's within the recommended range. Then, verify that the input and output signals are within the specified ranges. Use an oscilloscope to check for noise, ringing, or other signal integrity issues. If the issue persists, consult the datasheet and application notes for guidance.
The UCS1002-1-BP-TR is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. If you need to operate the device in a high-temperature environment, ensure that you follow proper thermal management practices, such as using a heat sink or thermal interface material.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCS1002-1-BP-TR Overview

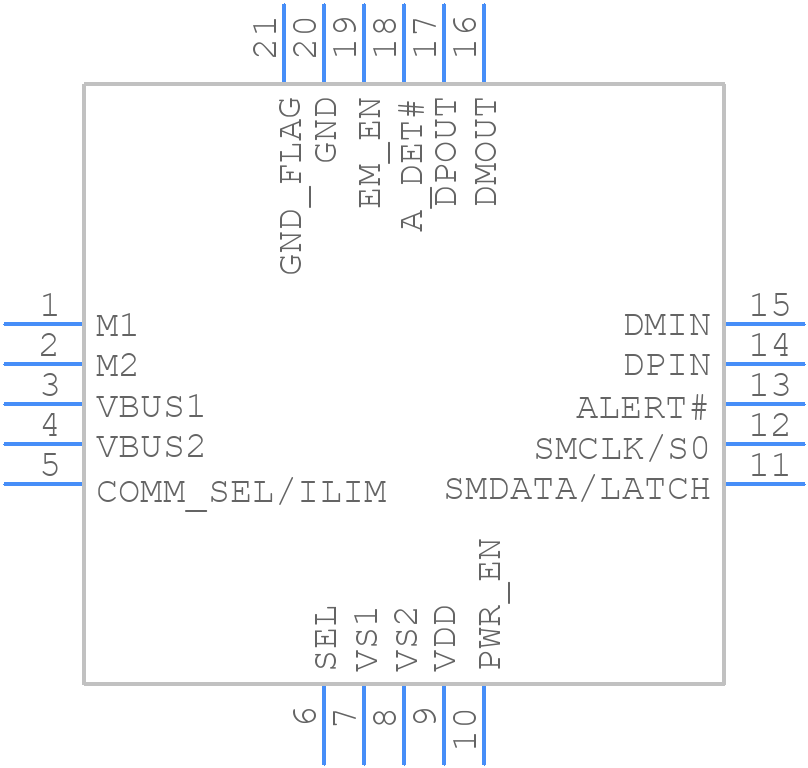

Use the download button to access the UCS1002-1-BP-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCS10,
or try a keyword search, such as Power Management Circuits
