UCS1002-2-BP - Microchip

Description: Power Switch ICs - Power Distribution Programmable USB Prt Power Controller

Download UCS1002-2-BP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

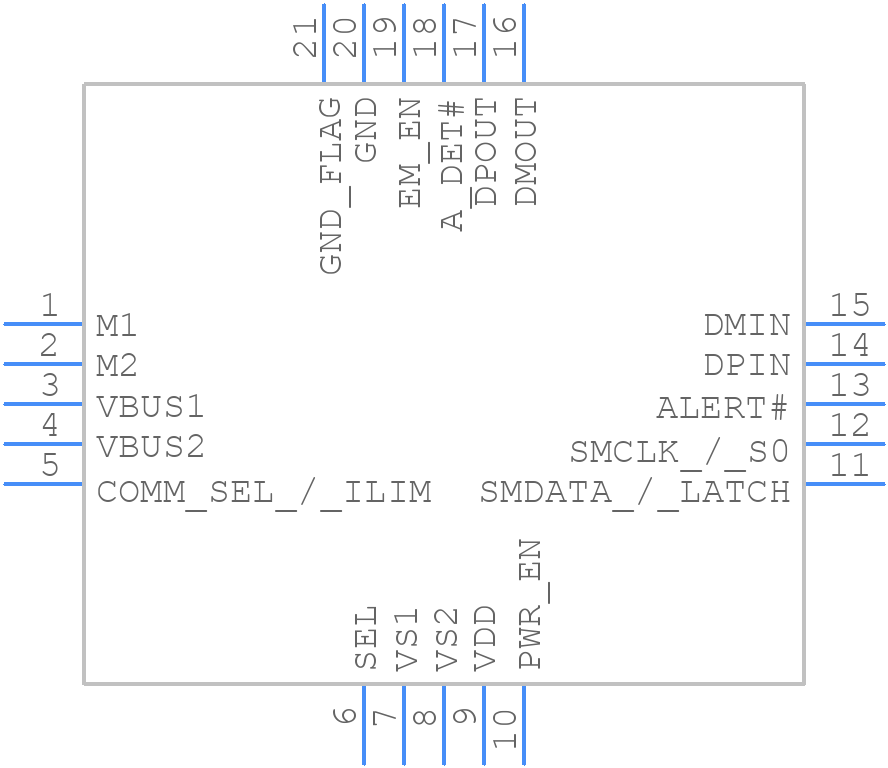

UCS1002-2-BP - Microchip - PCB symbol
click to zoom
PCB Footprints
UCS1002-2-BP - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 20-pin QFN 4 mm x 4 mm
click to zoom
3D Models
UCS1002-2-BP - Microchip - 3D model - Quad Flat No-Lead - 20-pin QFN 4 mm x 4 mm
click to zoom

UCS1002-2-BP Details

  • Manufacturer Part Number:

    UCS1002-2-BP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    QFN-20

  • Country Of Origin:

    Taiwan, Thailand

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    USB PD CONTROLLER

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.9 mm

  • Supply Current-Max (Isup):

    0.75 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +2.5V

  • Width:

    4 mm

UCS1002-2-BP Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the high-frequency traces short and away from the edges of the board. Use a common mode choke and a ferrite bead to filter the input power.
  • Use a reliable communication protocol such as SPI or I2C, and ensure that the clock frequency is within the specified range. Use a pull-up resistor on the SDA line for I2C communication. Implement error checking and retries to handle communication errors.
  • The maximum allowed voltage on the VCC pin is 5.5V. Exceeding this voltage may damage the device.
  • The thermal shutdown feature is activated when the junction temperature exceeds 150°C. To handle this, implement a thermal monitoring system to detect overheating and take corrective action such as reducing the output current or shutting down the system.
  • The UCS1002-2-BP is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. Ensure that the device is properly heatsinked and that the thermal design is adequate for the operating environment.
