UCS1003-1-BP-TR - Microchip

Description: Power Switch ICs - Power Distribution Programmable USBPort Power Controller I2

Download UCS1003-1-BP-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

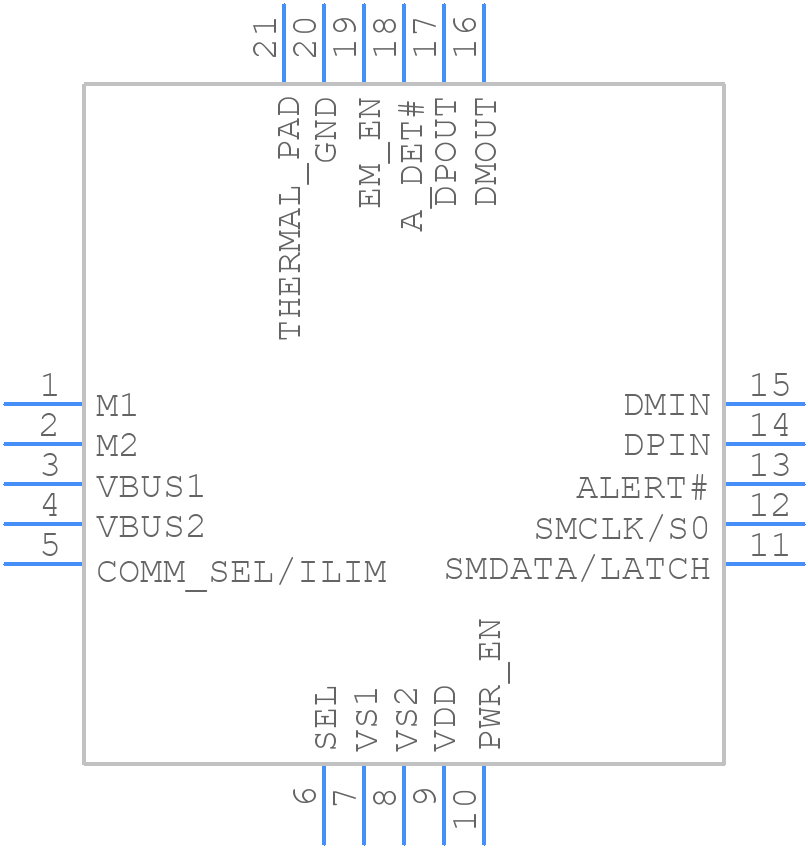

UCS1003-1-BP-TR - Microchip - PCB symbol
click to zoom
PCB Footprints
UCS1003-1-BP-TR - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UCS1003-1-BP-TR
click to zoom
3D Models
UCS1003-1-BP-TR - Microchip - 3D model - Quad Flat No-Lead - UCS1003-1-BP-TR
click to zoom

UCS1003-1-BP-TR Details

  • Manufacturer Part Number:

    UCS1003-1-BP-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    QFN-20

  • Country Of Origin:

    Taiwan, Thailand

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    USB PD CONTROLLER

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.9 mm

  • Supply Current-Max (Isup):

    0.75 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +2.5V

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    4 mm

UCS1003-1-BP-TR Frequently Asked Questions (FAQs)

  • A good PCB layout for the UCS1003-1-BP-TR involves keeping the input and output traces as short as possible, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure proper powering and decoupling, use a high-quality power supply with low ripple and noise, and add decoupling capacitors (e.g., 10uF and 100nF) close to the device's power pins. Also, ensure that the power supply can provide the required current.
  • The recommended operating temperature range for the UCS1003-1-BP-TR is -40°C to +125°C. However, the device can operate up to 150°C for short periods of time. It's essential to ensure proper thermal management to prevent overheating.
  • To troubleshoot issues with the UCS1003-1-BP-TR, start by checking the power supply and decoupling, then verify the input and output signals using an oscilloscope. Check for any signs of overheating, and ensure that the device is properly soldered and mounted on the PCB.
  • Yes, the UCS1003-1-BP-TR is suitable for high-reliability and safety-critical applications. However, it's essential to follow proper design and testing procedures, and to consult with Microchip Technology Inc. for specific guidance on using the device in such applications.
