UCS2113-1-V/G4 - Microchip

Description: USB Switch ICs Dual USB Port Pwr Swtch w/Current snsr

Download UCS2113-1-V/G4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

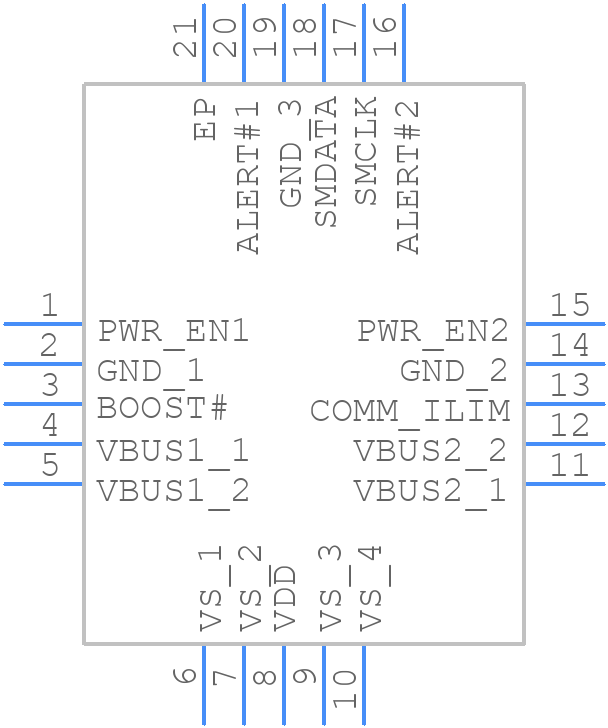

UCS2113-1-V/G4 - Microchip - PCB symbol
click to zoom
PCB Footprints
UCS2113-1-V/G4 - Microchip PCB footprint - Other - Other - 20SQFN-4x4B-0.5P
click to zoom
3D Models
UCS2113-1-V/G4 - Microchip - 3D model - Other - 20SQFN-4x4B-0.5P
click to zoom

UCS2113-1-V/G4 Details

  • Manufacturer Part Number:

    UCS2113-1-V/G4

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    QFN-20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Date Of Intro:

    2016-12-22

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    USB PD CONTROLLER

  • JESD-30 Code:

    S-PQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +4V

  • Width:

    4 mm

UCS2113-1-V/G4 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure that the thermal pad is connected to a large copper area to dissipate heat effectively.
  • Use a reliable communication protocol such as SPI or I2C, and ensure that the clock frequency is within the recommended range. Also, use a pull-up resistor on the SDA line for I2C communication.
  • The UCS2113 can deliver up to 1.5A of current to the load, but this may vary depending on the input voltage and ambient temperature. Ensure that the device is properly heatsinked to prevent overheating.
  • Use a voltage regulator or a voltage supervisor to ensure that the input voltage to the UCS2113 is within the recommended range. Also, consider adding overvoltage protection (OVP) and undervoltage protection (UVP) circuits to prevent damage to the device.
  • A 10uF to 22uF ceramic capacitor with an X5R or X7R dielectric is recommended for the input capacitor. This helps to filter out noise and ensure stable operation.
