UCS2113T-1-V/G4 - Microchip

Description: Power Switch ICs - Power Distribution Dual USB Port Pwr Swtch w/Current snsr

Download UCS2113T-1-V/G4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

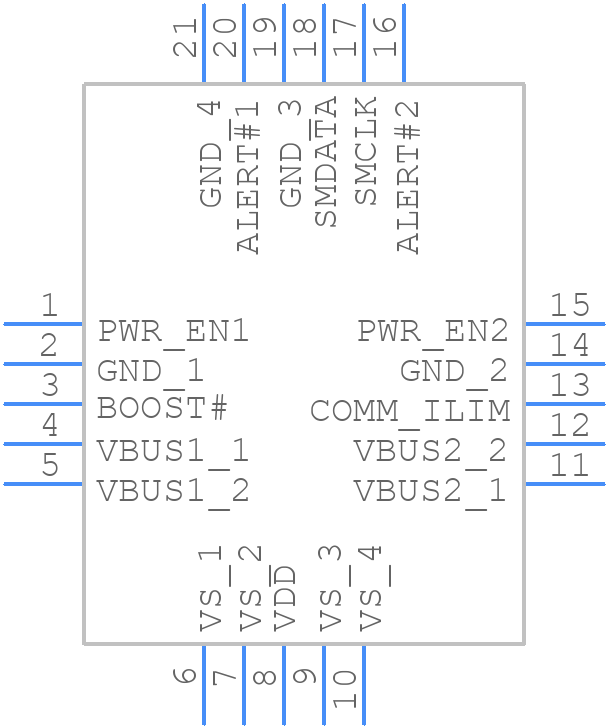

UCS2113T-1-V/G4 - Microchip - PCB symbol
click to zoom
PCB Footprints
UCS2113T-1-V/G4 - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UCS2113T-1-V/G4
click to zoom
3D Models
UCS2113T-1-V/G4 - Microchip - 3D model - Quad Flat No-Lead - UCS2113T-1-V/G4
click to zoom

UCS2113T-1-V/G4 Details

  • Manufacturer Part Number:

    UCS2113T-1-V/G4

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    QFN-20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Date Of Intro:

    2016-12-22

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    USB PD CONTROLLER

  • JESD-30 Code:

    S-PQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +4V

  • Width:

    4 mm

UCS2113T-1-V/G4 Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the UCS2113T-1-V/G4 evaluation board design files, which can be found on their website. It's essential to follow this layout to ensure optimal thermal performance and minimize thermal resistance.
  • The input capacitor values depend on the input voltage, output voltage, and output current requirements. Microchip provides a capacitor selection guide in the UCS2113T-1-V/G4 datasheet, but it's recommended to consult with a power supply expert or use online capacitor selection tools to ensure the correct values for your specific application.
  • While the datasheet specifies an operating temperature range of -40°C to +125°C, the maximum ambient temperature for reliable operation depends on the specific application and cooling conditions. As a general rule, it's recommended to derate the device's power dissipation by 1% for every 1°C above 85°C to ensure reliable operation.
  • Oscillations or instability issues can be caused by various factors, including layout, component selection, and feedback loop design. Microchip provides a troubleshooting guide in the UCS2113T-1-V/G4 datasheet, and it's recommended to consult with a power supply expert or use online resources to identify and resolve the root cause of the issue.
  • Microchip provides recommended soldering and rework conditions in the UCS2113T-1-V/G4 datasheet, including peak temperature, time, and soldering techniques. It's essential to follow these guidelines to prevent damage to the device and ensure reliable operation.
