UCS2113T-2C-V/G4 - Microchip

Description: USB Switch ICs Dual USB Port Power Switch with Increased Current Limit Threshold

Download UCS2113T-2C-V/G4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

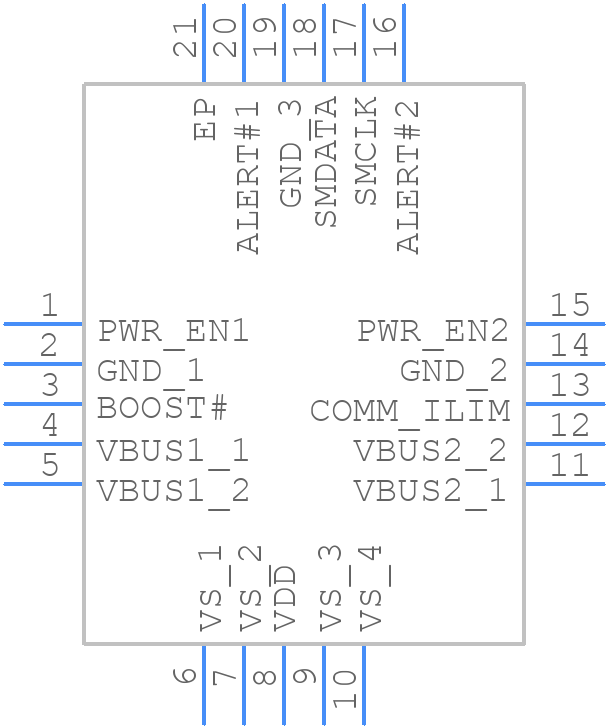

Symbol
UCS2113T-2C-V/G4 - Microchip - PCB symbol
click to zoom
PCB Footprints
UCS2113T-2C-V/G4 - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (ML) 20-Lead QFN
click to zoom
3D Models
UCS2113T-2C-V/G4 - Microchip - 3D model - Quad Flat No-Lead - (ML) 20-Lead QFN
click to zoom

UCS2113T-2C-V/G4 Details

  • Manufacturer Part Number:

    UCS2113T-2C-V/G4

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    20

  • Manufacturer Package Code:

    QFN-20

  • Country Of Origin:

    Thailand

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    19

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    USB PD CONTROLLER

  • JESD-30 Code:

    S-PQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +4V

  • Width:

    4 mm

UCS2113T-2C-V/G4 Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the UCS2113T-2C-V/G4 evaluation board design files, which can be found on the Microchip website. This layout takes into account thermal considerations, such as heat sink placement and thermal vias, to ensure optimal thermal performance.
  • The UCS2113T-2C-V/G4 has a programmable input voltage range, which can be configured using the I2C interface. The device has a built-in voltage regulator that can be programmed to accept input voltages from 4.5V to 60V. The specific configuration depends on the application requirements and can be found in the device's programming guide.
  • The maximum current rating for the output pins of the UCS2113T-2C-V/G4 is 1A per pin. However, the total current drawn from the device should not exceed 2A to ensure reliable operation and prevent overheating.
  • The UCS2113T-2C-V/G4 has a built-in overcurrent protection feature that can be enabled through the I2C interface. The device can be programmed to detect overcurrent conditions and respond by shutting down the output or generating an interrupt. The specific implementation details can be found in the device's datasheet and programming guide.
  • Microchip recommends using a TVS (Transient Voltage Suppressor) diode or a similar ESD protection device on the input and output pins of the UCS2113T-2C-V/G4 to protect against electrostatic discharge. The specific ESD protection requirements depend on the application and can be found in the device's datasheet.
