UCS3205-E/Q8A - Microchip

Description: Power Switch ICs - Power Distribution 22V 5A current measuring bi-directional load switch

Download UCS3205-E/Q8A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

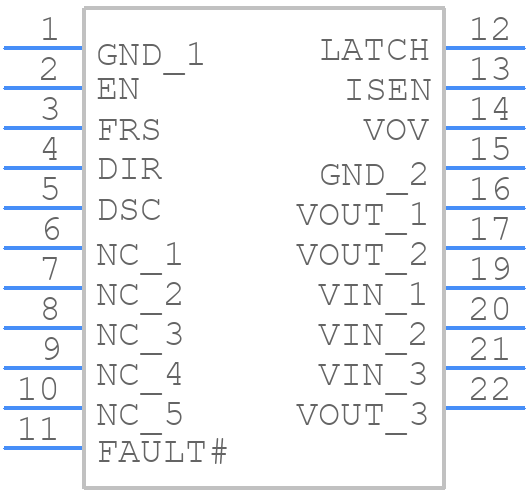

UCS3205-E/Q8A - Microchip - PCB symbol
click to zoom
PCB Footprints
UCS3205-E/Q8A - Microchip PCB footprint - Other - Other - 19-Lead Very Thin Plastic Quad Flat, No Lead Package (Q8A) - 3x3x0.9 mm Body [VQFN] With Dual Exposed Pa
click to zoom
3D Models
UCS3205-E/Q8A - Microchip - 3D model - Other - 19-Lead Very Thin Plastic Quad Flat, No Lead Package (Q8A) - 3x3x0.9 mm Body [VQFN] With Dual Exposed Pa
click to zoom

UCS3205-E/Q8A Details

  • Manufacturer Part Number:

    UCS3205-E/Q8A

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Pin Count:

    19

  • Manufacturer Package Code:

    VQFN-19

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    5 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    LOAD SWITCH

  • Terminal Finish:

    Matte Tin (Sn)
