UCS4002-E/6N - Microchip

Description: USB Interface IC USB Type-C Port Protector with Integrated VCONN FETs

Download UCS4002-E/6N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

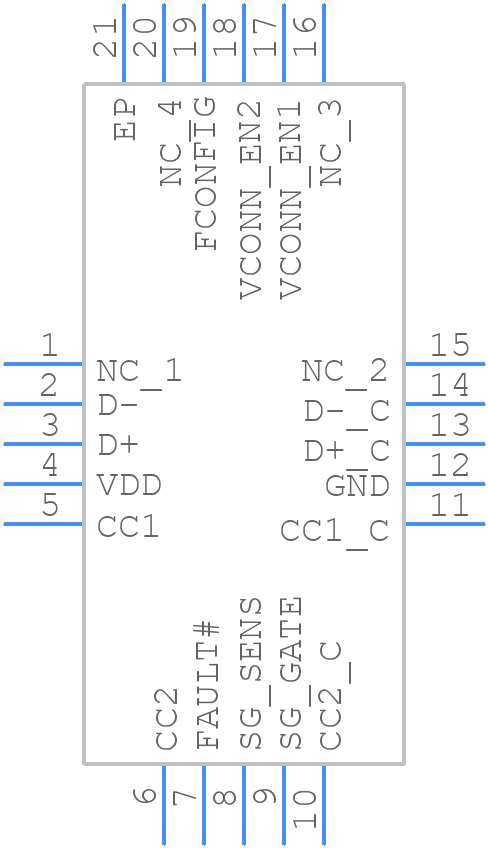

UCS4002-E/6N - Microchip - PCB symbol
click to zoom
PCB Footprints
UCS4002-E/6N - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 20-Lead Plastic Quad Flat, No Lead Package (6N) - 4x4x1.0 mm Body [VQFN]
click to zoom
3D Models
UCS4002-E/6N - Microchip - 3D model - Quad Flat No-Lead - 20-Lead Plastic Quad Flat, No Lead Package (6N) - 4x4x1.0 mm Body [VQFN]
click to zoom

UCS4002-E/6N Details

  • Manufacturer Part Number:

    UCS4002-E/6N

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    20

  • Manufacturer Package Code:

    VQFN-20

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    24

  • Analog IC - Other Type:

    USB PD CONTROLLER

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

UCS4002-E/6N Overview

Use the download button to access the UCS4002-E/6N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCS40, or try a keyword search, such as Power Management Circuits
