UCY2H330MHD3 - Nichicon

Description: Aluminum Electrolytic Capacitors - Radial Leaded 33uF 500 Volts 20%

Download UCY2H330MHD3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
UCY2H330MHD3 - Nichicon - PCB symbol
click to zoom
PCB Footprints

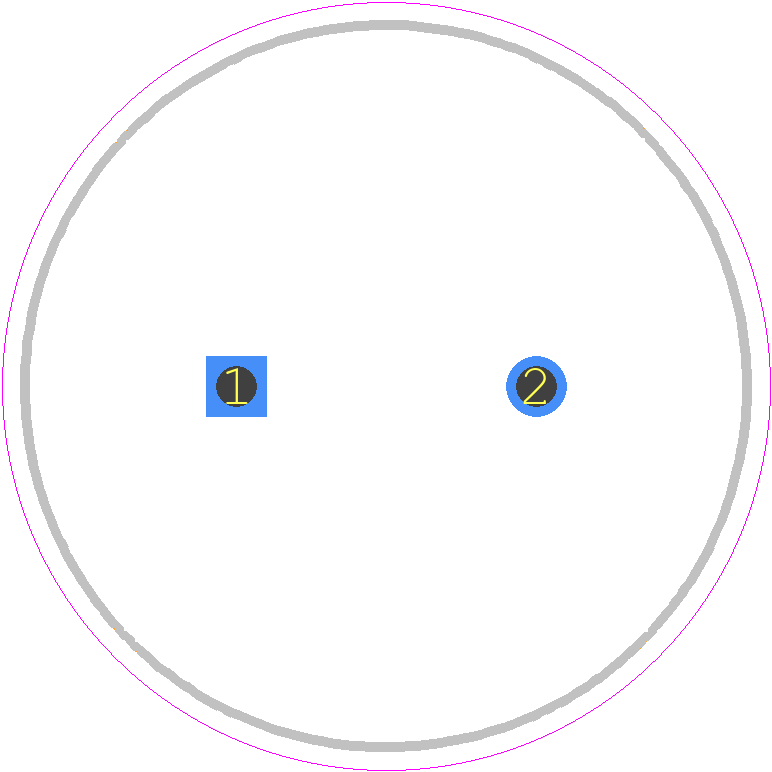

UCY2H330MHD3 - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - UCY2H330MHD3
click to zoom
3D Models
UCY2H330MHD3 - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - UCY2H330MHD3
click to zoom

UCY2H330MHD3 Details

  • Manufacturer Part Number:

    UCY2H330MHD3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Not Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    7.34

  • Capacitance:

    33 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    18 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • Leakage Current:

    0.76 mA

  • Length:

    25 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    500 V

  • Reference Standard:

    AEC-Q200

  • Ripple Current:

    350 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.24

  • Terminal Pitch:

    7.5 mm

  • Terminal Shape:

    WIRE

UCY2H330MHD3 Frequently Asked Questions (FAQs)

  • Nichicon recommends a voltage derating of 80% to ensure reliable operation and to prevent overheating.
  • The ESR of the UCY2H330MHD3 capacitor decreases with increasing frequency, but the datasheet does not provide a specific graph or equation. Engineers can contact Nichicon for more information or request a custom characterization.
  • The maximum allowable ripple current for the UCY2H330MHD3 capacitor is not explicitly stated in the datasheet. However, Nichicon provides a ripple current calculation formula in their application notes, which can be used to determine the maximum allowable ripple current based on the capacitor's temperature and frequency of operation.
  • The UCY2H330MHD3 capacitor is rated for operation up to 105°C, but Nichicon recommends derating the voltage and current ratings for extended operation above 85°C. Engineers should consult Nichicon's application notes for more information on high-temperature operation.
  • The capacitance of the UCY2H330MHD3 capacitor decreases with increasing temperature, but the datasheet does not provide a specific temperature coefficient. Engineers can contact Nichicon for more information or request a custom characterization.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

UCY2H330MHD3 Overview

Use the download button to access the UCY2H330MHD3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCY2H, or try a keyword search, such as Aluminum Electrolytic Capacitors
