UCY2H470MHD - Nichicon

Description: Aluminum Electrolytic Capacitors - Radial Leaded 47uF 500 Volts 20%

Download UCY2H470MHD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
UCY2H470MHD - Nichicon - PCB symbol
click to zoom

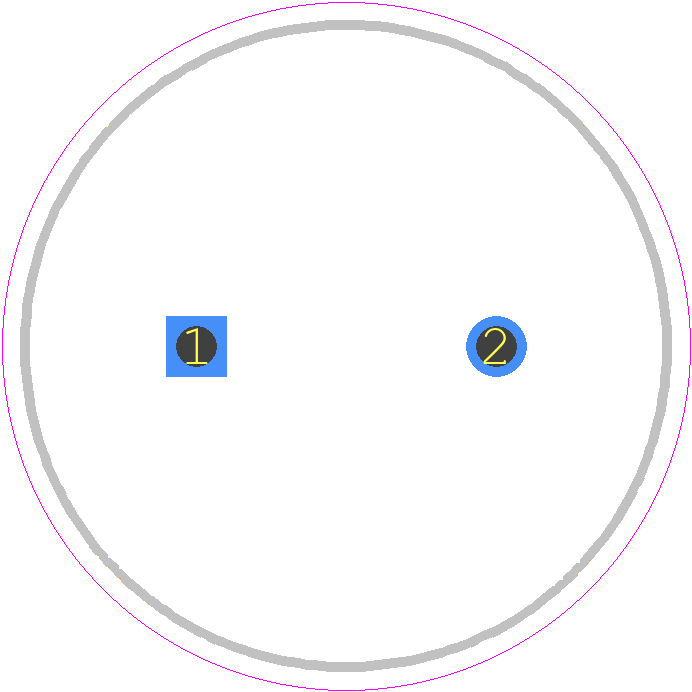

PCB Footprints
UCY2H470MHD - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - UCY2H470MHD
click to zoom
3D Models
UCY2H470MHD - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - UCY2H470MHD
click to zoom

UCY2H470MHD Details

  • Manufacturer Part Number:

    UCY2H470MHD

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Not Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    7.31

  • Capacitance:

    47 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    16 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e4

  • Leakage Current:

    1.04 mA

  • Length:

    40 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    500 V

  • Reference Standard:

    AEC-Q200

  • Ripple Current:

    440 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.24

  • Terminal Finish:

    Silver (Ag)

  • Terminal Pitch:

    7.5 mm

  • Terminal Shape:

    WIRE

UCY2H470MHD Frequently Asked Questions (FAQs)

  • Nichicon recommends a voltage derating of 80% or less for the UCY2H470MHD capacitor to ensure reliable operation and prevent overheating.
  • The ESR of the UCY2H470MHD capacitor decreases with increasing frequency. According to Nichicon's application notes, the ESR at 100 kHz is approximately 1/3 of the ESR at 100 Hz.
  • The UCY2H470MHD capacitor has a maximum operating temperature of 125°C, making it suitable for high-temperature applications. However, the capacitor's lifespan and performance may degrade at elevated temperatures.
  • The UCY2H470MHD capacitor is designed to withstand vibrations up to 10 Hz to 2000 Hz, 10 mm amplitude. However, it's recommended to consult with Nichicon or perform additional testing to ensure the capacitor's reliability in specific high-vibration applications.
  • Nichicon provides recommended PCB layout and land pattern guidelines in their application notes. The guidelines include recommendations for pad size, spacing, and thermal relief to ensure reliable soldering and minimize thermal stress.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

UCY2H470MHD Overview

Use the download button to access the UCY2H470MHD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCY2H, or try a keyword search, such as Aluminum Electrolytic Capacitors
