UDN6118A - Allegro Microsystems

Description: VACUUM FLUORESCENT DISPLAY DRIVER, 18 Pin, Plastic, DIP

Download UDN6118A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

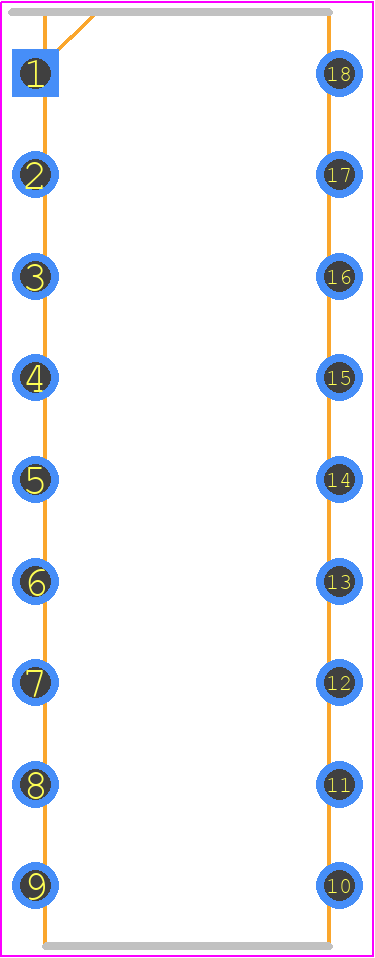

UDN6118A - Allegro Microsystems PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 18-Pin DIP
click to zoom
3D Models
UDN6118A - Allegro Microsystems  - 3D model - Dual-In-Line Packages - 18-Pin DIP
click to zoom

UDN6118A Details

  • Manufacturer Part Number:

    UDN6118A

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-18

  • Pin Count:

    18

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    0

  • Data Input Mode:

    PARALLEL

  • Display Mode:

    SEGMENT

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    VACUUM FLUORESCENT DISPLAY DRIVER

  • JESD-30 Code:

    R-PDIP-T18

  • JESD-609 Code:

    e0

  • Length:

    22.86 mm

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    8

  • Number of Segments:

    8

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP18,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Supply Current-Max:

    9 mA

  • Supply Voltage-Max:

    70 V

  • Supply Voltage-Min:

    5 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

UDN6118A Frequently Asked Questions (FAQs)

  • The UDN6118A can operate from -20°C to 85°C (TJ) and is suitable for automotive applications.
  • The UDN6118A requires a 5V ± 10% power supply, and it's recommended to use a decoupling capacitor (e.g., 0.1 μF) close to the VCC pin to filter out noise.
  • The EN pin is an active-high input that enables or disables the H-bridge outputs. When EN is low, the outputs are disabled, and the device is in a low-power state.
  • The UDN6118A has two input pins, IN1 and IN2, which control the motor direction. IN1 high and IN2 low sets the motor direction clockwise, while IN1 low and IN2 high sets the motor direction counterclockwise.
  • The UDN6118A has a maximum current rating of 1.5 A per channel (peak), and it's recommended to use an external current sense resistor to monitor the motor current.
