UF3N170400B7S - onsemi

Description: Operating temperature: 175?C (max); Extremely fast switching not dependent on temperature; Low gate charge and intrinsic capacitance; RoHS compliant

Download UF3N170400B7S Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

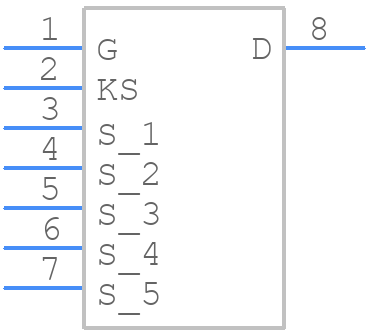

UF3N170400B7S - onsemi - PCB symbol
click to zoom
PCB Footprints

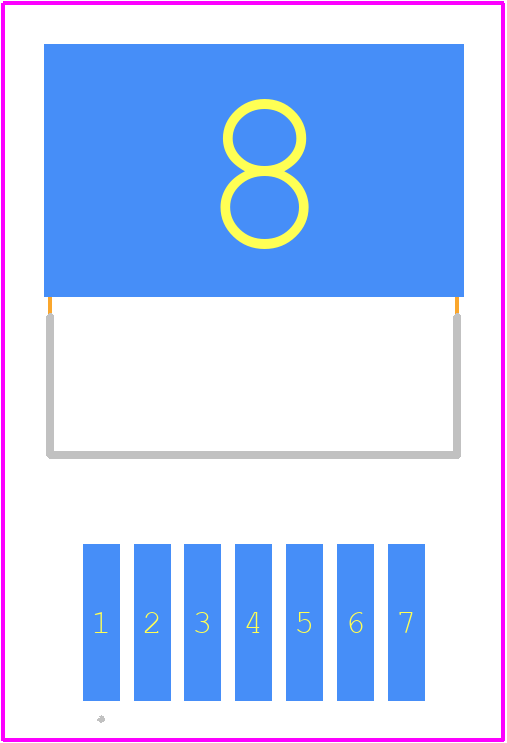

UF3N170400B7S - onsemi PCB footprint - Other - Other - D2PAK-7L
click to zoom
3D Models
UF3N170400B7S - onsemi - 3D model - Other - D2PAK-7L
click to zoom

UF3N170400B7S Details

  • Manufacturer Part Number:

    UF3N170400B7S

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    D2PAK-7

  • ECCN Code:

    EAR99

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    255

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

UF3N170400B7S Overview

Use the download button to access the UF3N170400B7S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UF3N1, or try a keyword search, such as Power Field-Effect Transistors
