UJA1169ATK/F/3Z - NXP

Description: CAN Interface IC Mini high-speed CAN system basis chip

Download UJA1169ATK/F/3Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

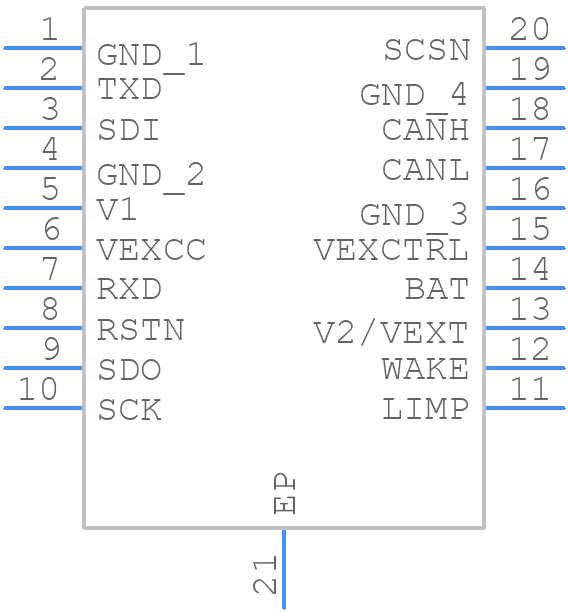

UJA1169ATK/F/3Z - NXP - PCB symbol
click to zoom
PCB Footprints
UJA1169ATK/F/3Z - NXP PCB footprint - Small Outline No-lead - Small Outline No-lead - SOT1360-1 (HVSON2
click to zoom
3D Models
UJA1169ATK/F/3Z - NXP - 3D model - Small Outline No-lead - SOT1360-1 (HVSON2
click to zoom

UJA1169ATK/F/3Z Details

  • Manufacturer Part Number:

    UJA1169ATK/F/3Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HVSON-20

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    5

  • Data Rate:

    15000 Mbps

  • JESD-30 Code:

    R-PDSO-N20

  • JESD-609 Code:

    e4

  • Length:

    5.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Number of Transceivers:

    1

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC20,.14,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    67 mA

  • Supply Voltage-Nom:

    13 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    CAN FD TRANSCEIVER

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.5 mm
