- Part Number UJA1169ATK/F
- Manufacturer NXP
- Pin Count 21
- Part Category Integrated Circuit
- Package Category Small Outline No-lead
- Footprint Name Small Outline No-lead - SOT1360-1 (HVSON2
- Released Date Mar 5, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
UJA1169ATK/F Details
-
Manufacturer Part Number:
UJA1169ATK/F
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
HVSON-20
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Manufacturer:
NXP Semiconductors
-
YTEOL:
7
-
Data Rate:
15000 Mbps
-
JESD-30 Code:
R-PDSO-N20
-
Length:
5.5 mm
UJA1169ATK/F Frequently Asked Questions (FAQs)
-
NXP provides a recommended PCB layout in the application note AN11535, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
-
NXP provides a configuration tool, the UJA1169 Configurator, which allows designers to select the desired configuration for their specific application, including settings for voltage regulation, current limiting, and fault detection.
-
The UJA1169ATK/F has an operating temperature range of -40°C to 125°C, making it suitable for use in harsh automotive environments.
-
NXP provides guidelines for EMC design and testing in the application note AN11535, including recommendations for PCB layout, component selection, and shielding to minimize electromagnetic interference.
-
The typical start-up time for the UJA1169ATK/F is around 10 ms, although this can vary depending on the specific application and configuration.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
UJA1169ATK/F Overview

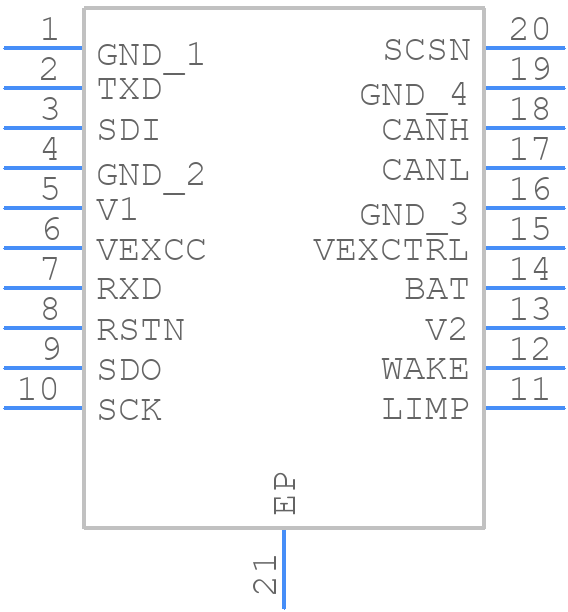

Use the download button to access the UJA1169ATK/F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UJA11,
or try a keyword search, such as Network Interfaces
