- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for UJA1169ATK
- Part Number UJA1169ATK
- Manufacturer NXP
- Pin Count 21
- Part Category Integrated Circuit
- Package Category Small Outline No-lead
- Footprint Name Small Outline No-lead - SOT1360-1 (HVSON2
- Released Date Mar 5, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
UJA1169ATK Details
-
Manufacturer Part Number:
UJA1169ATK
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
HVSON-20
-
Country Of Origin:
Thailand
-
HTS Code:
8542.39.00.01
-
Manufacturer:
NXP Semiconductors
-
YTEOL:
7
-
Data Rate:
15000 Mbps
-
JESD-30 Code:
R-PDSO-N20
-
Length:
5.5 mm
UJA1169ATK Frequently Asked Questions (FAQs)
-
NXP provides a recommended PCB layout in the application note AN11536, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
-
The UJA1169ATK is a flexible device that can be configured for various automotive bus protocols such as CAN, LIN, and SAE J1850. The configuration is done through the SPI interface, and NXP provides a software development kit (SDK) and application notes that provide detailed guidance on how to configure the device for specific protocols.
-
The maximum cable length supported by the UJA1169ATK depends on the specific bus protocol and the cable characteristics. As a general guideline, NXP recommends a maximum cable length of 40 meters for CAN and 10 meters for LIN. However, the actual cable length may be longer or shorter depending on the specific application and cable characteristics.
-
To ensure EMC with the UJA1169ATK, NXP recommends following the guidelines in the application note AN11536, which includes recommendations for PCB layout, component selection, and shielding. Additionally, the device is designed to meet the automotive EMC standards such as IEC 62132 and CISPR 25.
-
The UJA1169ATK has an operating temperature range of -40°C to 125°C, making it suitable for use in harsh automotive environments.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
UJA1169ATK Overview

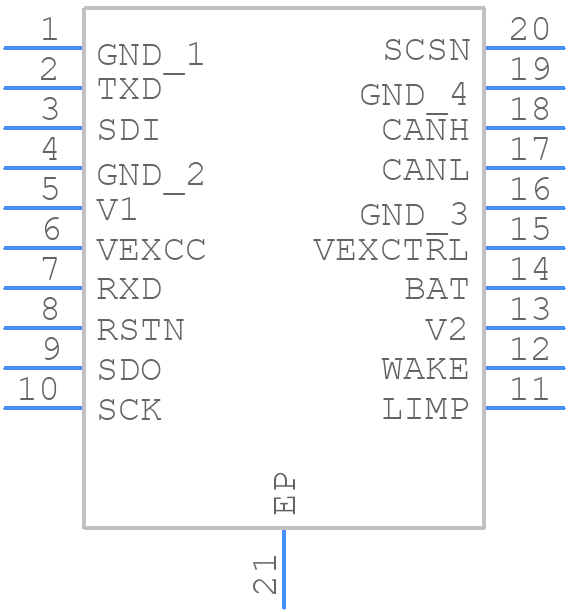

Use the download button to access the UJA1169ATK schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UJA11,
or try a keyword search, such as Network Interfaces
