UJA1169TK/3Z - NXP

Description: High speed CAN companion system

Download UJA1169TK/3Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

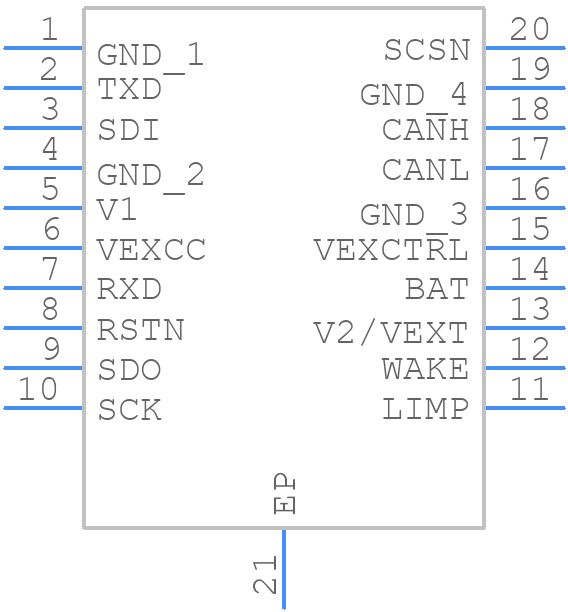

UJA1169TK/3Z - NXP PCB footprint - Small Outline No-lead - Small Outline No-lead - SOT1360-1 (HVSON2
click to zoom
3D Models
UJA1169TK/3Z - NXP  - 3D model - Small Outline No-lead - SOT1360-1 (HVSON2
click to zoom

UJA1169TK/3Z Details

  • Manufacturer Part Number:

    UJA1169TK/3Z

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Manufacturer Package Code:

    SOT1360-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Analog IC - Other Type:

    SYSTEM BASIS CHIP

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Time@Peak Reflow Temperature-Max (s):

    30

UJA1169TK/3Z Frequently Asked Questions (FAQs)

  • A good PCB layout for the UJA1169TK/3Z involves keeping the power supply lines as short as possible, using a solid ground plane, and placing the decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper configuration, carefully review the datasheet and application notes, and consult with NXP's technical support team if necessary. Also, consider using NXP's evaluation boards and software development tools to simplify the configuration process.
  • The UJA1169TK/3Z has a maximum junction temperature of 150°C. To manage thermal performance, ensure good airflow around the device, use a heat sink if necessary, and avoid overheating the device during operation.
  • To troubleshoot issues, start by reviewing the datasheet and application notes, and checking the device's configuration and PCB layout. Use oscilloscopes and logic analyzers to debug the device's signals, and consult with NXP's technical support team if necessary.
  • Yes, the UJA1169TK/3Z is susceptible to electromagnetic interference (EMI). To minimize EMI, use shielding, filtering, and grounding techniques, and follow NXP's guidelines for EMI reduction.
