UJA1169TK/F/3Z - NXP

Description: CAN Interface IC Mini high-speed CAN system basis chip

Download UJA1169TK/F/3Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

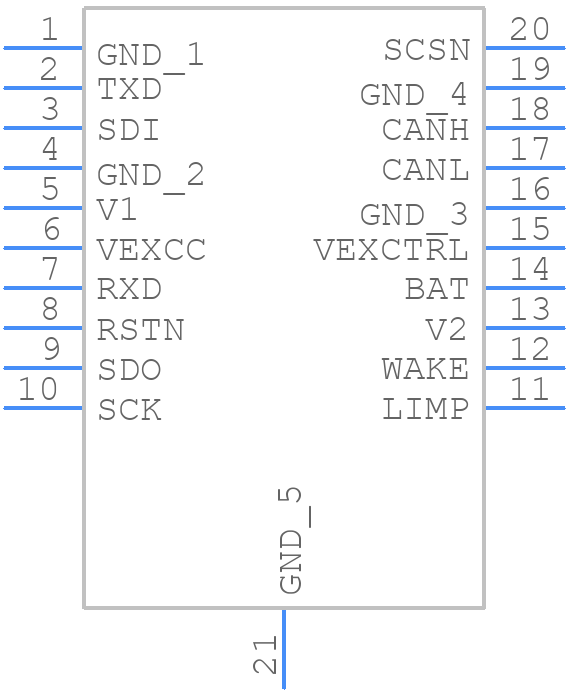

UJA1169TK/F/3Z - NXP - PCB symbol
click to zoom
PCB Footprints
UJA1169TK/F/3Z - NXP PCB footprint - Small Outline No-lead - Small Outline No-lead - UJA1169TK/F/3Z
click to zoom
3D Models
UJA1169TK/F/3Z - NXP - 3D model - Small Outline No-lead - UJA1169TK/F/3Z
click to zoom

UJA1169TK/F/3Z Details

  • Manufacturer Part Number:

    UJA1169TK/F/3Z

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Manufacturer Package Code:

    SOT1360-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Analog IC - Other Type:

    SYSTEM BASIS CHIP

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Time@Peak Reflow Temperature-Max (s):

    30

UJA1169TK/F/3Z Frequently Asked Questions (FAQs)

  • A good PCB layout for the UJA1169TK/F/3Z involves keeping the power and ground traces as short as possible, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure EMC with the UJA1169TK/F/3Z, follow proper PCB design and layout guidelines, use shielding and filtering, and ensure that the device is properly grounded. Additionally, follow the guidelines outlined in the NXP application note AN11536 for EMC considerations.
  • The UJA1169TK/F/3Z has an operating temperature range of -40°C to 125°C. However, the device can be operated at temperatures above 125°C for short periods of time, but this may affect its reliability and lifespan.
  • To troubleshoot issues with the UJA1169TK/F/3Z, start by checking the power supply voltage, clock frequency, and signal integrity. Use oscilloscopes and logic analyzers to debug the device. Consult the NXP support team and the device's datasheet for further guidance.
  • The UJA1169TK/F/3Z is not designed for safety-critical applications. However, NXP offers other devices that are designed for safety-critical applications, such as the SJA1162, which is an ASIL-D certified device. Consult the NXP support team for more information.
