UJA1169TK/FZ - NXP

Description: CAN Interface IC Mini high-speed CAN system basis chip

Download UJA1169TK/FZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

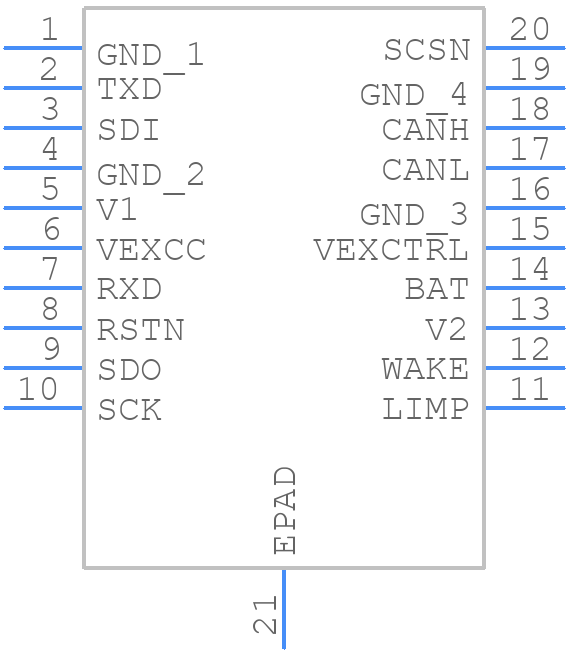

UJA1169TK/FZ - NXP - PCB symbol
click to zoom
PCB Footprints
UJA1169TK/FZ - NXP PCB footprint - Small Outline No-lead - Small Outline No-lead - UJA1169TK/F/3Z
click to zoom
3D Models
UJA1169TK/FZ - NXP - 3D model - Small Outline No-lead - UJA1169TK/F/3Z
click to zoom

UJA1169TK/FZ Details

  • Manufacturer Part Number:

    UJA1169TK/FZ

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Manufacturer Package Code:

    SOT1360-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Analog IC - Other Type:

    SYSTEM BASIS CHIP

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Time@Peak Reflow Temperature-Max (s):

    30

UJA1169TK/FZ Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the UJA1169TK/FZ is -40°C to 125°C.
  • The UJA1169TK/FZ can be configured using the NXP Semiconductors' UJA1169TK/FZ evaluation board and the accompanying software development kit (SDK). The SDK provides a graphical user interface (GUI) to configure the device and evaluate its performance.
  • The maximum current rating for the UJA1169TK/FZ is 1.5 A per channel.
  • Yes, the UJA1169TK/FZ is AEC-Q100 qualified, making it suitable for use in automotive applications.
  • NXP Semiconductors provides a troubleshooting guide for the UJA1169TK/FZ, which can be found in the device's documentation. Additionally, engineers can contact NXP Semiconductors' technical support team for assistance.
