UJA1169TK - NXP

Description: SO 11898-2:201x (upcoming merged ISO 11898-2/5/6) compliant 1 Mbit/s high-speed CAN transceiver supporting CAN FD active communication up to 2 Mbit/s in the CAN FD data field (all six variants)  Autonomous bus biasing according to ISO 11898-6:2013 and ISO 11898-2:201x  Scalable 5 V or 3.3 V 250 mA low-drop voltage regulator for 5 V/3.3 V microcontroller supply (V1) based on external PNP transistor concept for thermal scaling  CAN-bus connections are truly floating when power to pin BAT is off  No

Download UJA1169TK Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

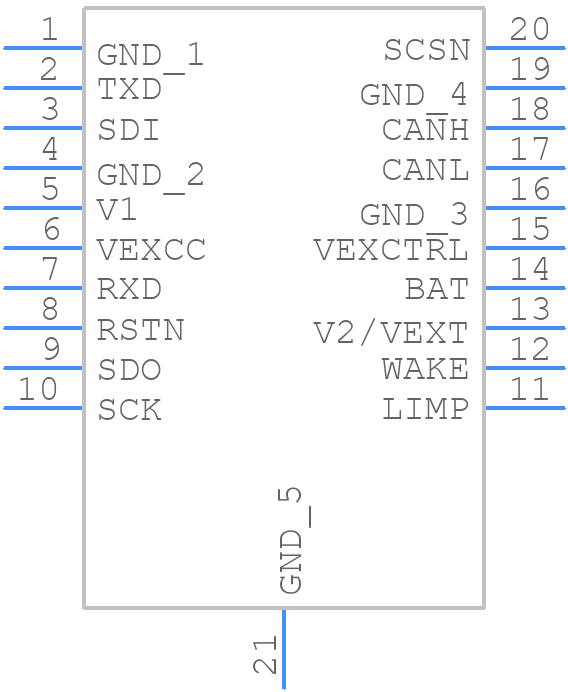

UJA1169TK - NXP - PCB symbol
click to zoom
PCB Footprints
UJA1169TK - NXP PCB footprint - Small Outline No-lead - Small Outline No-lead - SOT1360-1 (HVSON2
click to zoom
3D Models
UJA1169TK - NXP - 3D model - Small Outline No-lead - SOT1360-1 (HVSON2
click to zoom

UJA1169TK Details

  • Manufacturer Part Number:

    UJA1169TK

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Analog IC - Other Type:

    SYSTEM BASIS CHIP
