UJC06505K - USCi

Description: MOSFET 650V/45mOhm SiC CASCODE

Download UJC06505K Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

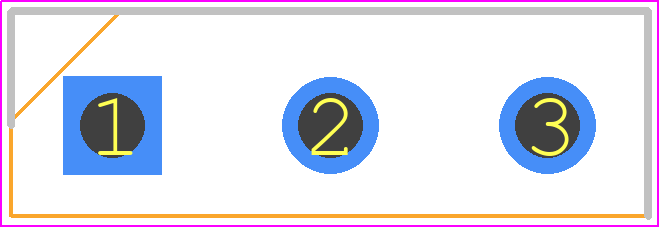

UJC06505K - USCi PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - TO-247
click to zoom
3D Models
UJC06505K - USCi  - 3D model - Transistor Outline, Vertical - TO-247
click to zoom

UJC06505K Details

  • Manufacturer Part Number:

    UJC06505K

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • ECCN Code:

    EAR99

  • Manufacturer:

    UnitedSiC

  • Avalanche Energy Rating (Eas):

    52 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    650 V

  • Drain Current-Max (ID):

    36.5 A

  • Drain-source On Resistance-Max:

    0.045 Ω

  • FET Technology:

    JUNCTION CASCODE

  • Feedback Cap-Max (Crss):

    5.7 pF

  • JEDEC-95 Code:

    TO-247

  • JESD-30 Code:

    R-PSFM-T3

  • JESD-609 Code:

    e3

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Mode:

    DEPLETION MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    113 W

  • Pulsed Drain Current-Max (IDM):

    113 A

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON CARBIDE

UJC06505K Frequently Asked Questions (FAQs)

  • UnitedSiC recommends a PCB layout with a solid copper plane on the top and bottom layers, with multiple vias connecting them to ensure good thermal conductivity. A minimum of 2 oz copper thickness is recommended.
  • To ensure reliable operation at high temperatures, it's essential to follow the recommended thermal design guidelines, including proper heat sinking, thermal interface material selection, and avoiding thermal hotspots. Additionally, ensure that the device is operated within the specified junction temperature (Tj) range.
  • The recommended gate drive voltage for UJC06505K is between 15V to 20V, with a current capability of up to 2A. However, the actual gate drive requirements may vary depending on the specific application and switching frequency.
  • To protect the device from overvoltage and overcurrent conditions, it's recommended to use a suitable overvoltage protection (OVP) circuit and overcurrent protection (OCP) circuit. Additionally, ensure that the device is operated within the specified maximum ratings for voltage and current.
  • The recommended switching frequency for UJC06505K depends on the specific application and operating conditions. However, as a general guideline, UnitedSiC recommends a maximum switching frequency of 100 kHz for most applications.
