The maximum current that can be sunk by each output of the ULN2004APG is 500mA.
No, the ULN2004APG is designed as a low-side switch, and it's not recommended to use it as a high-side switch due to its internal circuitry and voltage ratings.
You can use a flyback diode (such as 1N4007) in parallel with the inductive load to protect the ULN2004APG from back-EMF. The diode should be connected in a way that it conducts when the output is turned off.
The minimum input voltage required for the ULN2004APG to function properly is 2.4V, but it's recommended to use a minimum of 3V to ensure reliable operation.
Yes, the ULN2004APG can be used to drive a relay, but you need to ensure that the relay's coil current is within the output current rating of the ULN2004APG (500mA per output). You may also need to add a flyback diode to protect the ULN2004APG from back-EMF.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ULN2004APG Overview

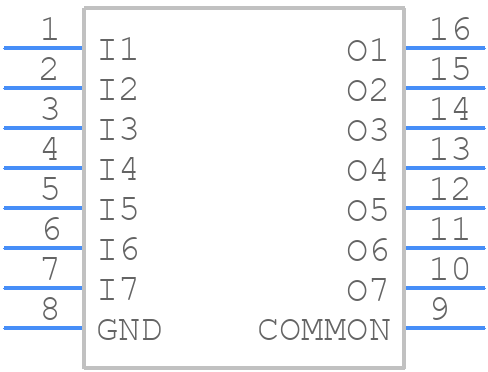

Use the download button to access the ULN2004APG schematic symbol, PCB footprint, and 3D model.
