ULN2801A - STMicroelectronics

Description: Darlington Transistors Eight NPN Array

Download ULN2801A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

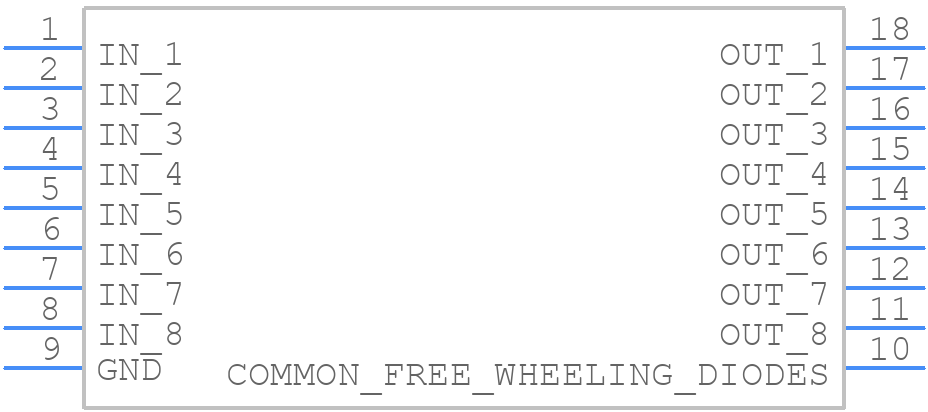

ULN2801A - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

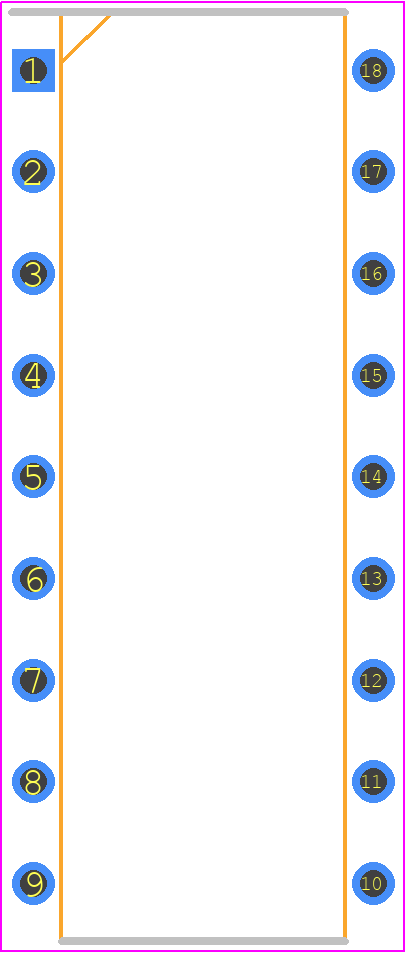

ULN2801A - STMicroelectronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP-18
click to zoom
3D Models
ULN2801A - STMicroelectronics - 3D model - Dual-In-Line Packages - DIP-18
click to zoom

ULN2801A Details

  • Manufacturer Part Number:

    ULN2801A

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    DIP-18

  • Pin Count:

    18

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    5.5

  • Built-in Protections:

    TRANSIENT

  • Driver Number of Bits:

    8

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDIP-T18

  • Length:

    23.24 mm

  • Number of Functions:

    1

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Characteristics:

    OPEN-COLLECTOR

  • Output Current Flow Direction:

    SINK

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP18,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Seated Height-Max:

    3.93 mm

  • Surface Mount:

    NO

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    1 µs

  • Turn-on Time:

    1 µs

  • Width:

    7.62 mm

ULN2801A Frequently Asked Questions (FAQs)

  • The maximum current that each output can handle is 500mA. However, it's recommended to derate the current to 350mA for reliable operation.
  • You can add a flyback diode (e.g., 1N4007) in parallel with the inductive load to protect the ULN2801A from back-EMF. The diode should be connected in the reverse direction of the load current.
  • The minimum input voltage required for the ULN2801A to function properly is 4.5V. However, it's recommended to use a minimum of 5V for reliable operation.
  • Yes, the ULN2801A can be used to drive a relay. However, make sure to choose a relay with a coil voltage and current rating that matches the ULN2801A's output capabilities.
  • The power dissipation of the ULN2801A can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ULN2801A Overview

Use the download button to access the ULN2801A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ULN28, or try a keyword search, such as Peripheral Drivers
