ULN2804A - STMicroelectronics

Description: ULN2804A, Darlington Transistor Array, NPN 0.5 A 50 V, Octal, 18-Pin, PDIP

Download ULN2804A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

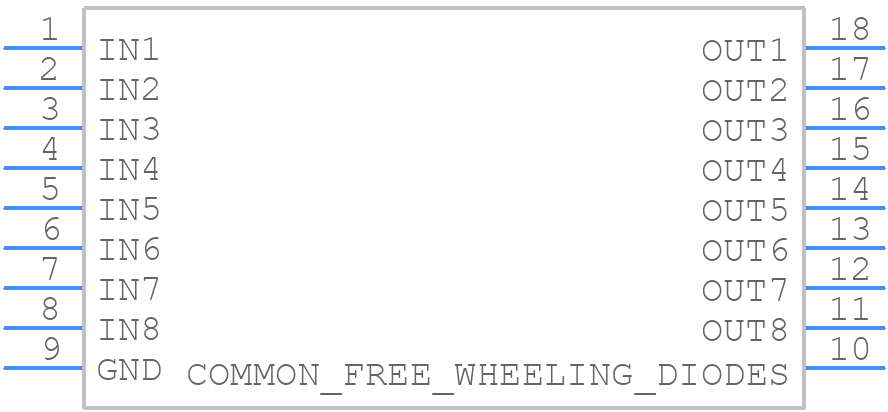

ULN2804A - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

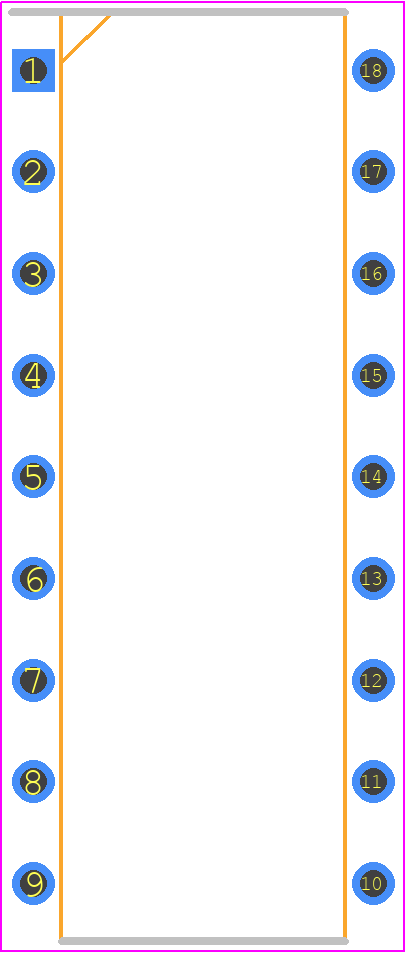

ULN2804A - STMicroelectronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP-18
click to zoom
3D Models
ULN2804A - STMicroelectronics - 3D model - Dual-In-Line Packages - DIP-18
click to zoom

ULN2804A Details

  • Manufacturer Part Number:

    ULN2804A

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    DIP-18

  • Pin Count:

    18

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    5.5

  • Built-in Protections:

    TRANSIENT

  • Driver Number of Bits:

    8

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDIP-T18

  • Length:

    23.24 mm

  • Number of Functions:

    1

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Characteristics:

    OPEN-COLLECTOR

  • Output Current Flow Direction:

    SINK

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP18,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Seated Height-Max:

    3.93 mm

  • Surface Mount:

    NO

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    1 µs

  • Turn-on Time:

    1 µs

  • Width:

    7.62 mm

ULN2804A Frequently Asked Questions (FAQs)

  • The maximum current that each output can handle is 500mA. However, it's recommended to derate the current to 350mA for reliable operation.
  • The power dissipation of the ULN2804A can be calculated using the formula: Pd = (Vin - Vout) x Iout x N, where Vin is the input voltage, Vout is the output voltage, Iout is the output current, and N is the number of outputs.
  • The minimum input voltage required for the ULN2804A to function properly is 4.5V. However, it's recommended to use a minimum of 5V for reliable operation.
  • Yes, the ULN2804A can be used as a relay driver. However, it's essential to ensure that the relay coil current is within the maximum current rating of the ULN2804A (500mA per output).
  • To protect the ULN2804A from back-EMF when driving inductive loads, a freewheeling diode (such as 1N4007) should be connected in parallel with the load. This diode will absorb the back-EMF and prevent damage to the ULN2804A.
