ULQ2802A - STMicroelectronics

Description: Darlington Octal NPN 50V 0.5A PDIP18

Download ULQ2802A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

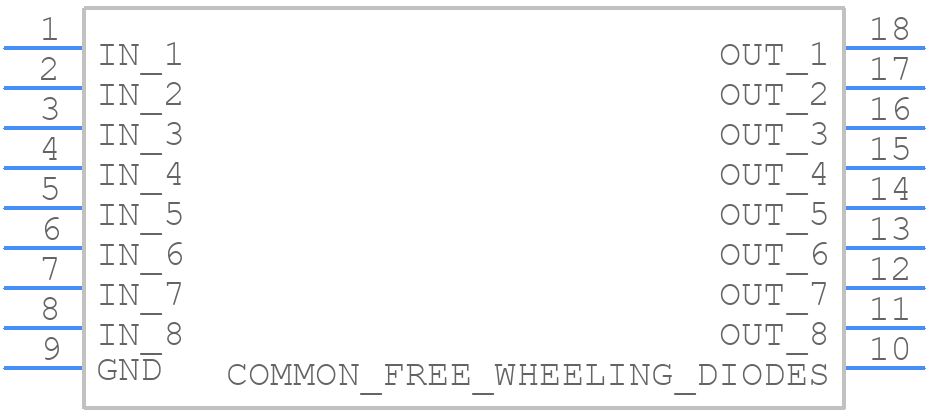

ULQ2802A - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

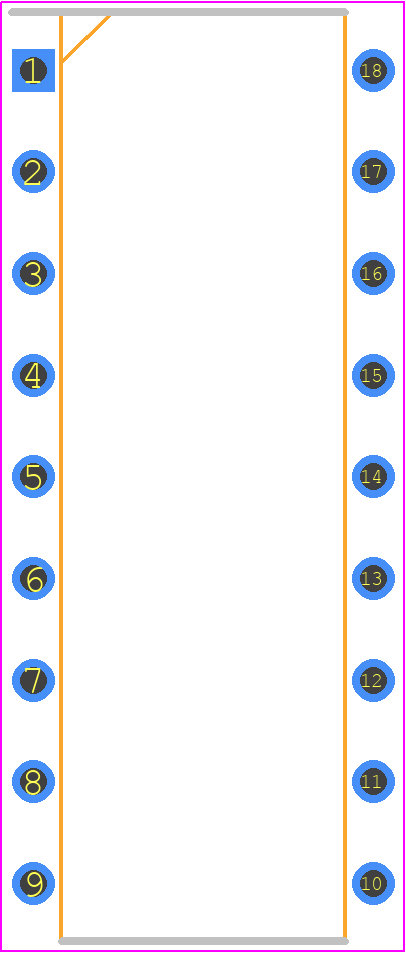

ULQ2802A - STMicroelectronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP-18
click to zoom
3D Models
ULQ2802A - STMicroelectronics - 3D model - Dual-In-Line Packages - DIP-18
click to zoom

ULQ2802A Details

  • Manufacturer Part Number:

    ULQ2802A

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    DIP-18

  • Pin Count:

    18

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6

  • Additional Feature:

    LENGTH IS MAX VALUE

  • Built-in Protections:

    TRANSIENT

  • Driver Number of Bits:

    8

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDIP-T18

  • Length:

    23.24 mm

  • Number of Functions:

    1

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-COLLECTOR

  • Output Current Flow Direction:

    SINK

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP18,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Seated Height-Max:

    3.93 mm

  • Surface Mount:

    NO

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    1 µs

  • Turn-on Time:

    1 µs

  • Width:

    7.62 mm

ULQ2802A Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN2552, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The ULQ2802A has a thermal pad that must be connected to a thermal ground plane on the PCB to dissipate heat. A thermal interface material (TIM) can be used to improve thermal conductivity. Additionally, the device should be placed in a well-ventilated area, and heat sinks or fans can be used to further reduce temperatures.
  • Although the datasheet specifies a maximum input voltage of 5.5V, it's recommended to limit the input voltage to 5V to ensure reliable operation and prevent damage to the device.
  • The ULQ2802A is rated for operation up to 125°C, but its performance may degrade at higher temperatures. If operation above 125°C is required, consider using a different device or implementing additional cooling measures.
  • Start by verifying the PCB layout and component values against the recommended application circuit. Check for proper power supply decoupling, and ensure that the input voltage is within the specified range. Use an oscilloscope to monitor the output voltage and current, and consult the datasheet and application notes for troubleshooting guidelines.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ULQ2802A Overview

Use the download button to access the ULQ2802A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ULQ28, or try a keyword search, such as Peripheral Drivers
