Part Image

UMD9NFHATR - ROHM Semiconductor

Description: NPN+PNP, SOT-363, Dual Digital Transistor (Bias Resistor Built-in Transistor) for automotive

Download UMD9NFHATR Model

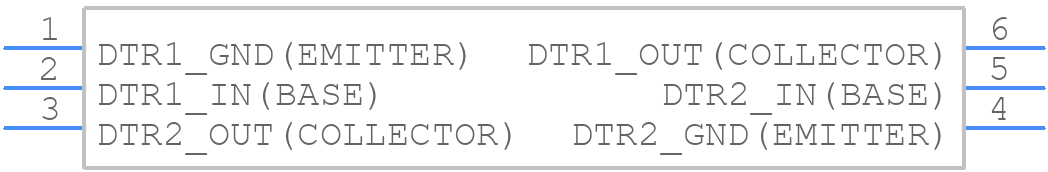

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
UMD9NFHATR - ROHM Semiconductor PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - UMD9NFHATR
click to zoom
3D Models
UMD9NFHATR - ROHM Semiconductor  - 3D model - SOT23 (6-Pin) - UMD9NFHATR
click to zoom

UMD9NFHATR Details

  • Manufacturer Part Number:

    UMD9NFHATR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SC-88, 6 PIN

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    7

  • Additional Feature:

    BUILT IN BIAS RESISTANCE RATIO IS 4.7

  • Collector Current-Max (IC):

    0.1 A

  • Collector-Emitter Voltage-Max:

    50 V

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR

  • DC Current Gain-Min (hFE):

    68

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e2

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    NPN AND PNP

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Copper (Sn/Cu)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    250 MHz

UMD9NFHATR Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for UMD9NFHATR is 4.5V to 5.5V, as specified in the datasheet.
  • To ensure the stability of the output voltage, it is recommended to use a 10uF or larger ceramic capacitor for the output capacitor (Cout) and a 1uF or larger ceramic capacitor for the input capacitor (Cin).
  • The maximum output current that UMD9NFHATR can provide is 500mA, as specified in the datasheet.
  • To handle thermal considerations, ensure that the device is mounted on a PCB with a sufficient copper area to dissipate heat. Also, consider using a heat sink or a thermal pad to improve heat dissipation.
  • The EN (Enable) pin is used to enable or disable the output voltage. When the EN pin is high, the output voltage is enabled, and when it is low, the output voltage is disabled.
