UP2-AH-4-TH - Same Sky

Description: Type A, USB 2.0, 480 Mbps, 30 Vac, 1 A, Right Angle, Through Hole Mounting Style, Through Hole Contact Pin Type, 30 µin Plating Thickness, Black Insulator, USB Plug

Download UP2-AH-4-TH Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
UP2-AH-4-TH - Same Sky - PCB symbol
click to zoom

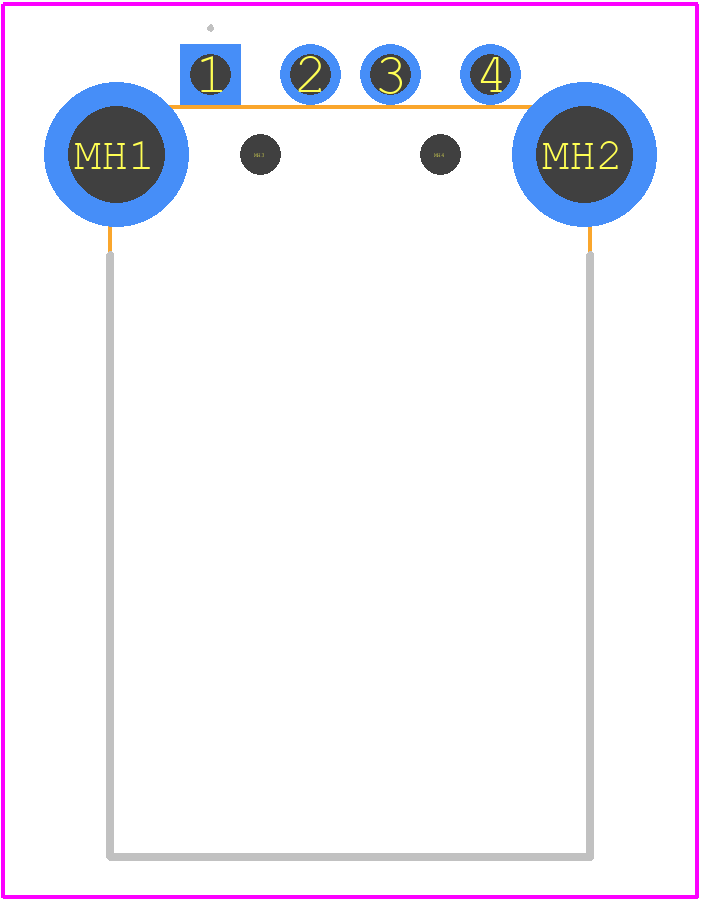

PCB Footprints
UP2-AH-4-TH - Same Sky PCB footprint - Other - Other - UP2-AH-4-TH-1
click to zoom
3D Models
UP2-AH-4-TH - Same Sky - 3D model - Other - UP2-AH-4-TH-1
click to zoom

UP2-AH-4-TH Details

  • Manufacturer Part Number:

    UP2-AH-4-TH

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Same Sky

  • YTEOL:

    6.2

  • Board Mounting Option:

    MOUNTING FLANGE

  • Body Breadth:

    0.177 inch

  • Body Depth:

    0.738 inch

  • Body Length:

    0.502 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    USB CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    30 mΩ

  • Contact Style:

    USB 2.0 A

  • Dielectric Withstanding Voltage:

    500VAC V

  • Durability:

    1500 Cycles

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of PCB Rows:

    1

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Plating Thickness:

    30u inch

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    1.5 A

  • Reference Standard:

    UL

  • Shell Finish:

    NICKEL

  • Shell Material:

    STEEL

  • Terminal Length:

    0.04 inch

  • Terminal Pitch:

    2 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    4

  • UL Flammability Code:

    94V-0

UP2-AH-4-TH Frequently Asked Questions (FAQs)

  • CUI Devices recommends a PCB layout with a solid ground plane and thermal vias under the device to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended for the PCB.
  • To ensure reliable operation in high-vibration environments, CUI Devices recommends securing the device using a screw or adhesive, and using a PCB with a rigid design to minimize flexure. Additionally, consider using a conformal coating to protect the device from environmental factors.
  • CUI Devices recommends derating the input voltage by 10% to ensure reliable operation and to account for any voltage tolerances. For example, if the device is rated for 24V, the maximum allowable input voltage would be 21.6V.
  • Yes, the UP2-AH-4-TH can be used in a redundant or parallel configuration to increase overall system reliability or to provide higher power output. However, it's essential to ensure that the devices are properly synchronized and that the system is designed to handle the increased power output.
  • CUI Devices estimates the MTBF for the UP2-AH-4-TH to be around 1.5 million hours, based on MIL-HDBK-217F calculations. However, this value can vary depending on the specific application, operating conditions, and environmental factors.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

UP2-AH-4-TH Overview

Use the download button to access the UP2-AH-4-TH schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UP2-A, or try a keyword search, such as Telecom and Datacom Connectors

About Same Sky

CUI Devices is an electronic components manufacturer that specializes in audio components, interconnects, motion, relay, switch and thermal management solutions. The company designs and manufacturers components for use in a wide range of industries that include aerospace, industrial, medical, and telecommunications. CUI Devices is headquartered in Lake Oswego, Oregon.
