UP37BJ0140 - Electronic Concepts

Description: Unlytic® Miniature Series, 900VDC, 14uF, 0.015 OHMS

Download UP37BJ0140 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this UP37BJ0140 model

Email notifications will be applied after download.

Send part feedback

Symbol

UP37BJ0140 - Electronic Concepts - PCB symbol

PCB Footprints

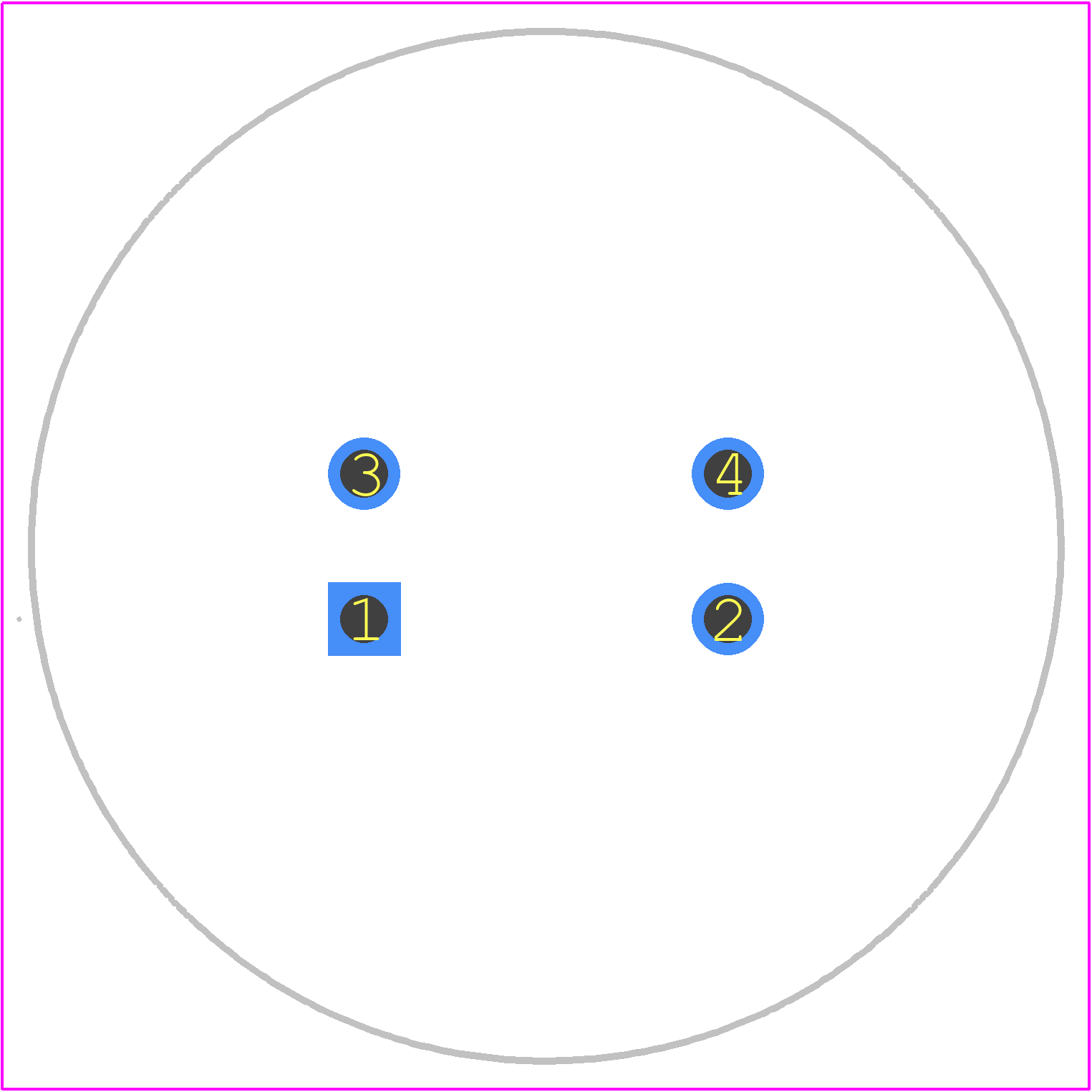

UP37BJ0140 - Electronic Concepts PCB footprint - Other - Other - UP37BJ0140-5

3D Models

UP37BJ0140 - Electronic Concepts - 3D model - Other - UP37BJ0140-5

Datasheet Download Datasheet
Stock & Prices Price & Stock for UP37BJ0140
Part Number UP37BJ0140
Manufacturer Electronic Concepts
Pin Count 4
Part Category Capacitor
Package Category Other
Footprint Name Other - UP37BJ0140-5
Released Date Jun 3, 2021
Last Modified Date Feb 27, 2024 6:25 AM UTC
Pinout / Pin List Click Here (Member Only)

UP37BJ0140 Details

Manufacturer Part Number:
UP37BJ0140
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
,
Reach Compliance Code:
Compliant
Country Of Origin:
USA
ECCN Code:
EAR99
HTS Code:
8532.25.00.80
Manufacturer:
Electronic Concepts Inc
Capacitor Type:
FILM CAPACITOR
JESD-609 Code:
e3
Manufacturer Series:
UP37
Number of Terminals:
2
Terminal Finish:
TIN

Trust Checks

Community Provided

System Verified

Community Approved

UP37BJ0140 Overview

Use the download button to access the UP37BJ0140 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like UP37B, or try a keyword search, such as Film Capacitors
