UPA1560H-AZ - Renesas Electronics

UPA1560H-AZ Details

• Manufacturer Part Number:

  UPA1560H-AZ

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

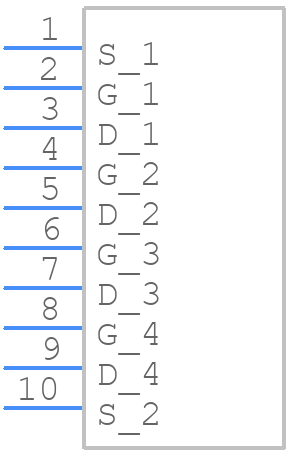

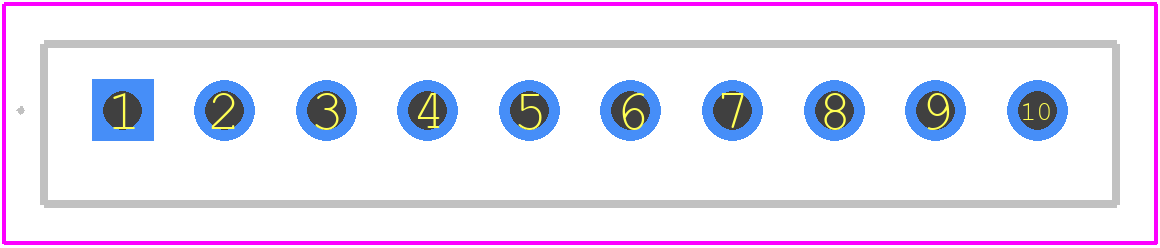

• Package Description:

  SIP-10

• Pin Count:

  10

• ECCN Code:

  EAR99

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Avalanche Energy Rating (Eas):

  0.9 mJ

• Case Connection:

  ISOLATED

• Configuration:

  2 BANKS, COMMON SOURCE, 2 ELEMENTS WITH BUILT-IN DIODE

• DS Breakdown Voltage-Min:

  120 V

• Drain Current-Max (ID):

  3 A

• Drain-source On Resistance-Max:

  0.2 Ω

• FET Technology:

  METAL-OXIDE SEMICONDUCTOR

• Feedback Cap-Max (Crss):

  70 pF

• JESD-30 Code:

  R-PSFM-T10

• Number of Elements:

  4

• Number of Terminals:

  10

• Operating Mode:

  ENHANCEMENT MODE

• Operating Temperature-Max:

  150 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  FLANGE MOUNT

• Peak Reflow Temperature (Cel):

  260

• Polarity/Channel Type:

  N-CHANNEL

• Power Dissipation Ambient-Max:

  3.7 W

• Power Dissipation-Max (Abs):

  28 W

• Pulsed Drain Current-Max (IDM):

  12 A

• Qualification Status:

  Not Qualified

• Surface Mount:

  NO

• Terminal Form:

  THROUGH-HOLE

• Terminal Position:

  SINGLE

• Time@Peak Reflow Temperature-Max (s):

  10

• Transistor Application:

  SWITCHING

• Transistor Element Material:

  SILICON
