Description:The µPC271 and µPC311 are high-performance general-purpose comparators that have the same input characteristics as general-purpose operational amplifiers and can directly drive standard logic circuits such as TTL, CMOS, and HNIL. Its power supply voltage range is flexible whereby it exhibits excellent characteristics not only in a 5 V single power supply but also in ± 15 V power supply which is equivalent to an operational amplifier. These products are equipped with a strobe terminal and input offset adjust
Renesas provides a recommended PCB layout guide for the UPC271G2-E1-A, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance. It's available on the Renesas website or through their support team.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, including temperature and voltage ranges. Additionally, consider using thermal management techniques such as heat sinks, thermal interfaces, and airflow management. Renesas also provides guidance on derating the device's performance at high temperatures.
The UPC271G2-E1-A has built-in ESD protection, but it's still essential to follow proper ESD handling and storage procedures to prevent damage. Renesas recommends following the JEDEC standard JESD625-A for ESD handling and storage, and using ESD-protective packaging and materials.
The UPC271G2-E1-A is not specifically designed or tested for radiation-hardened applications. If you need a radiation-hardened device, Renesas offers other products that are designed and qualified for such applications. Contact Renesas support for more information.
Renesas provides a recommended soldering profile for the UPC271G2-E1-A, which includes temperature and time guidelines for reflow soldering. The profile is available in the device's datasheet or through Renesas support.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UPC271G2-E1-A Overview

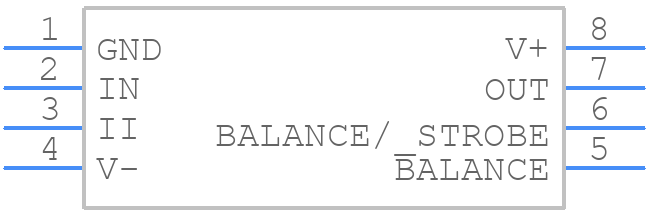

Use the download button to access the UPC271G2-E1-A schematic symbol, PCB footprint, and 3D model.
