UPC271G2-E1-AP - Renesas Electronics

Description: Input Offset Voltage ±2 mV (TYP.) • Input Bias Current 100 nA (TYP.) • Pulse Response Time 200 ns (TYP.) • Equipped with a Strobe Terminal, ideal for interfacing with logic circuits. • Two output circuit formats are possible. (open collector, emitter follower) • Large output current capacity to directly drive the LEDs and lamps.

Download UPC271G2-E1-AP Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this UPC271G2-E1-AP model

Email notifications will be applied after download.

Send part feedback

Symbol

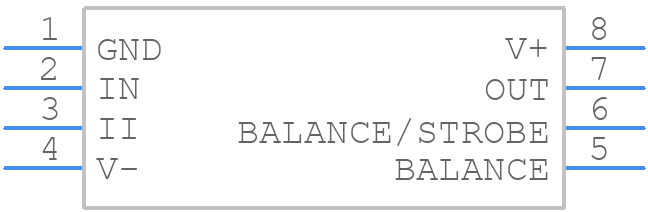

UPC271G2-E1-AP - Renesas Electronics - PCB symbol

PCB Footprints

UPC271G2-E1-AP - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PLSP0008DE-A

3D Models

UPC271G2-E1-AP - Renesas Electronics - 3D model - Small Outline Packages - PLSP0008DE-A

Datasheet Download Datasheet
Stock & Prices Price & Stock for UPC271G2-E1-AP
Part Number UPC271G2-E1-AP
Manufacturer Renesas Electronics
Pin Count 8
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - PLSP0008DE-A
Released Date May 29, 2025
Last Modified Date May 29, 2025 11:01 AM UTC
Pinout / Pin List Click Here (Member Only)

UPC271G2-E1-AP Details

Manufacturer Part Number:
UPC271G2-E1-AP
Manufacturer:
Renesas Electronics Corporation

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

UPC271G2-E1-AP Overview

Use the download button to access the UPC271G2-E1-AP schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like UPC27, or try a keyword search, such as Comparators
