UPC272G2-A - Renesas Electronics

Description: The UPC272G2 are general-purpose comparators utilizing the CMOS process are suitable for low voltage, low power consumption, and fast response.

Download UPC272G2-A Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this UPC272G2-A model

Email notifications will be applied after download.

Send part feedback

Symbol

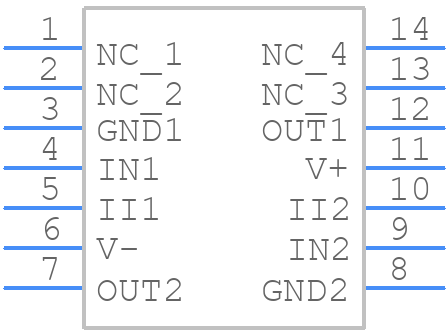

UPC272G2-A - Renesas Electronics - PCB symbol

PCB Footprints

UPC272G2-A - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 14-PIN PLASTIC SOP (5.72 mm (225))

3D Models

UPC272G2-A - Renesas Electronics - 3D model - Small Outline Packages - 14-PIN PLASTIC SOP (5.72 mm (225))

Datasheet Download Datasheet
Stock & Prices Price & Stock for UPC272G2-A
Part Number UPC272G2-A
Manufacturer Renesas Electronics
Pin Count 14
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - 14-PIN PLASTIC SOP (5.72 mm (225))
Released Date Feb 24, 2021
Last Modified Date Jan 29, 2025 12:30 PM UTC
Pinout / Pin List Click Here (Member Only)

UPC272G2-A Details

Manufacturer Part Number:
UPC272G2-A
Manufacturer:
Renesas Electronics Corporation

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

UPC272G2-A Overview

Use the download button to access the UPC272G2-A schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like UPC27, or try a keyword search, such as Comparators
