UPC311G2-E1-A - Renesas Electronics

Description: The µPC271 and µPC311 are high-performance general-purpose comparators that have the same input characteristics as general-purpose operational amplifiers and can directly drive standard logic circuits such as TTL, CMOS, and HNIL. Its power supply voltage range is flexible whereby it exhibits excellent characteristics not only in a 5 V single power supply but also in ± 15 V power supply which is equivalent to an operational amplifier. These products are equipped with a strobe terminal and input offset adjust

Download UPC311G2-E1-A Model

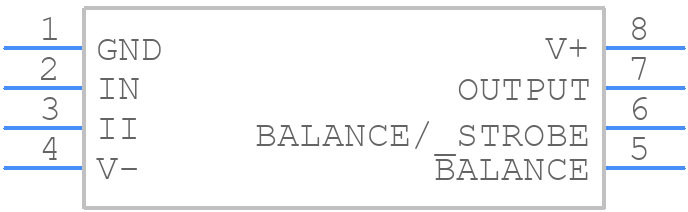

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
UPC311G2-E1-A - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 8_PIN PLASTIC SOP (5.72 mm (225))
click to zoom
3D Models
UPC311G2-E1-A - Renesas Electronics  - 3D model - Small Outline Packages - 8_PIN PLASTIC SOP (5.72 mm (225))
click to zoom

UPC311G2-E1-A Details

  • Manufacturer Part Number:

    UPC311G2-E1-A

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOP

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    PRSP0008DL-A8

  • Country Of Origin:

    Japan, Malaysia

  • ECCN Code:

    5A002

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    5

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.25 µA

  • Bias Current-Max (IIB) @25C:

    0.25 µA

  • Input Offset Voltage-Max:

    10000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e6

  • Length:

    5.2 mm

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    80 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Type:

    TOTEM POLE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    200 ns

  • Seated Height-Max:

    1.6 mm

  • Supply Current-Max:

    7.5 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL EXTENDED

  • Terminal Finish:

    Tin/Bismuth (Sn/Bi)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

UPC311G2-E1-A Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (APN) document, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The UPC311G2-E1-A has a thermal pad on the bottom of the package, which should be connected to a thermal ground plane on the PCB to dissipate heat. Additionally, Renesas recommends using a heat sink or thermal interface material to further improve thermal management.
  • Renesas recommends using X5R or X7R ceramic capacitors with a voltage rating of 10V or higher for the input and output capacitors. The capacitance value should be selected based on the specific application requirements, but a typical value is 10uF to 22uF.
  • The UPC311G2-E1-A has a shutdown pin (SHDN) that can be used to put the device into low-power mode. When the SHDN pin is pulled low, the device enters a low-power state, reducing power consumption. Additionally, Renesas recommends using a power-saving mode (PSM) to further reduce power consumption during idle periods.
  • Renesas recommends following good EMI and EMC design practices, such as using a solid ground plane, minimizing loop areas, and using shielding and filtering components as necessary. Additionally, the device has built-in EMI filters and should be placed away from noise-sensitive components.
