UPC339G2-E1-A - Renesas Electronics

Description: Support is limited to customers who have already adopted these products.µPC177, µPC339 comparators are designed for single power supply operation. The features include lowvoltage operation, common-mode input voltage range from V-(GND) level, open-collector output and low current consumption. Furthermore, these products can operate with both power supplies and can be widely used for various voltage comparison application. Depending on the usage and operating ambient temperature range, the μPC177 is design fo

Download UPC339G2-E1-A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

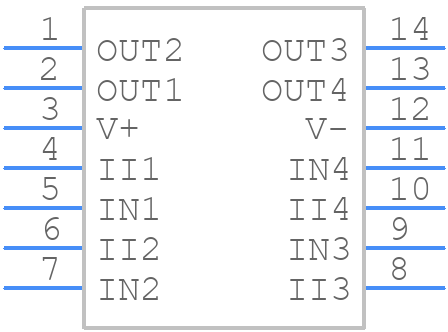

UPC339G2-E1-A - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
UPC339G2-E1-A - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 14-pin plastic SOP _1
click to zoom
3D Models
UPC339G2-E1-A - Renesas Electronics - 3D model - Small Outline Packages - 14-pin plastic SOP _1
click to zoom

UPC339G2-E1-A Details

  • Manufacturer Part Number:

    UPC339G2-E1-A

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SOP

  • Package Description:

    SOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    PRSP0014DI-A14

  • Country Of Origin:

    Thailand

  • ECCN Code:

    5A002

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Date Of Intro:

    1981-10-09

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    3

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    0.25 µA

  • Bias Current-Max (IIB) @25C:

    0.25 µA

  • Input Offset Voltage-Max:

    5000 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e6

  • Length:

    10.2 mm

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    80 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Type:

    OPEN-COLLECTOR

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    1300 ns

  • Seated Height-Max:

    1.8 mm

  • Supply Current-Max:

    2 mA

  • Supply Voltage Limit-Max:

    36 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL EXTENDED

  • Terminal Finish:

    TIN BISMUTH

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

UPC339G2-E1-A Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the UPC339G2-E1-A is -40°C to 85°C.
  • The POR circuitry in the UPC339G2-E1-A is designed to reset the device during power-up. To handle it, ensure that the power supply voltage rises monotonically and reaches the minimum operating voltage (VDD) within the specified time (typically 10ms).
  • The internal voltage regulator in the UPC339G2-E1-A generates a stable internal voltage (VINT) from the external power supply voltage (VDD), which is used to power the internal circuitry.
  • The clock settings for the UPC339G2-E1-A can be configured using the Clock Control Register (CCR). The CCR allows you to select the clock source, divide the clock frequency, and enable or disable the clock output.
  • The maximum current that the UPC339G2-E1-A can sink or source depends on the specific pin and the operating conditions. Refer to the datasheet for the specific current ratings for each pin.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

UPC339G2-E1-A Overview

Use the download button to access the UPC339G2-E1-A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UPC33, or try a keyword search, such as Comparators
