UPC811G2-A - Renesas Electronics

Description: µPC811 is a unique J-FET input operational amplifier that uses a high-speed PNP transistor (fT = 300 MHz)for the output stage to achieve fast response and high stability. The resistor-trimming method proven in other Renesas High-Precision Op-Amp and High-Precision reference voltage is incorporate in this Op-Amp input stage, thus producing an excellent low offset voltage characteristics that has surpasses conventional general purpose op-amp in spite of being JFET input. Along with this series of lineup, the

Download UPC811G2-A Model

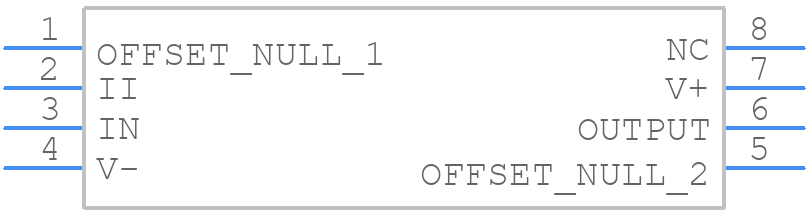

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
UPC811G2-A - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - SOP (225 MIL)
click to zoom
3D Models
UPC811G2-A - Renesas Electronics  - 3D model - Small Outline Packages - SOP (225 MIL)
click to zoom

UPC811G2-A Details

  • Manufacturer Part Number:

    UPC811G2-A

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOP

  • Package Description:

    0.225 INCH, PLASTIC, SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    PRSP0008DL-A8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    5A002

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.0002 µA

  • Bias Current-Max (IIB) @25C:

    0.0002 µA

  • Common-mode Reject Ratio-Min:

    70 dB

  • Common-mode Reject Ratio-Nom:

    100 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.0001 µA

  • Input Offset Voltage-Max:

    2500 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e6

  • Length:

    5.2 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.8 mm

  • Slew Rate-Nom:

    15 V/us

  • Supply Current-Max:

    3.4 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Bismuth (Sn/Bi)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    4000

  • Voltage Gain-Min:

    25000

  • Wideband:

    NO

  • Width:

    4.4 mm

UPC811G2-A Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide for the UPC811G2-A, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance. It's available on the Renesas website or through their support team.
  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, including junction temperature (Tj) and ambient temperature (Ta). Additionally, consider using thermal management techniques such as heat sinks, thermal interfaces, and airflow management.
  • Renesas recommends using low-ESR, high-frequency capacitors (e.g., 100nF to 1uF) with a voltage rating of at least 10V, placed as close as possible to the power pins of the UPC811G2-A. The exact capacitor values and placement may vary depending on the specific application and PCB design.
  • To troubleshoot issues with the internal oscillator, check the oscillator circuitry, including the crystal resonator, capacitors, and resistors. Ensure that the oscillator circuit is properly connected and that the crystal resonator is of the correct type and frequency. Also, verify that the oscillator is properly enabled and configured through the device's registers.
  • The built-in voltage regulator of the UPC811G2-A has limitations on its output current, voltage range, and power dissipation. Be sure to review the datasheet and application notes to understand these limitations and ensure that the regulator is used within its specified operating conditions.
