UPC844G2-A - Renesas Electronics

Description: The μPC844 and μPC4744 are high-speed versions of the single-power general-purpose operational amplifier, μPC451, μPC324, realizing high-speed response and high stability. By adopting a High-Speed PNP transistor circuit, various characteristics such as slew rate and gain bandwidth are improved, as compared to μPC451 and μPC324, the load capacity stability is also improved, with no crossover distortion. It can be used widely for various application circuits such as single power supply AC amplifiers, active f

Download UPC844G2-A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
UPC844G2-A - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

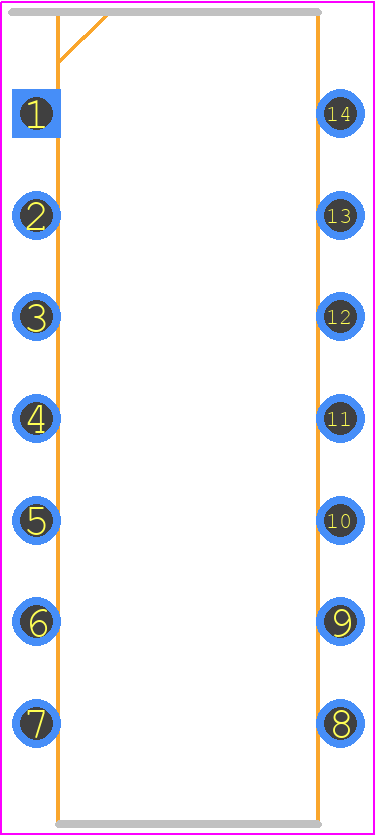

UPC844G2-A - Renesas Electronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 14-Pin DIP (300 mil)
click to zoom
3D Models
UPC844G2-A - Renesas Electronics - 3D model - Dual-In-Line Packages - 14-Pin DIP (300 mil)
click to zoom

UPC844G2-A Details

  • Manufacturer Part Number:

    UPC844G2-A

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    SOP

  • Package Description:

    SOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    PRSP0014DI-A14

  • Country Of Origin:

    Thailand

  • ECCN Code:

    5A002

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.5 µA

  • Bias Current-Max (IIB) @25C:

    0.5 µA

  • Common-mode Reject Ratio-Min:

    70 dB

  • Common-mode Reject Ratio-Nom:

    86 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    6000 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e6

  • Length:

    10.46 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR, EMBOSSED

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    YES

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.8 mm

  • Slew Rate-Nom:

    8.5 V/us

  • Supply Current-Max:

    11 mA

  • Supply Voltage Limit-Max:

    36 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Bismuth (Sn/Bi)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Unity Gain BW-Nom:

    3500

  • Voltage Gain-Min:

    25000

  • Wideband:

    NO

  • Width:

    4.4 mm

UPC844G2-A Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for UPC844G2-A is 4.5V to 5.5V.
  • The POR circuitry in UPC844G2-A is internally generated and does not require any external components. However, it is recommended to add an external capacitor (typically 0.1uF) between VCC and GND to ensure stable power-on reset operation.
  • The maximum clock frequency supported by UPC844G2-A is 4MHz.
  • The WDT in UPC844G2-A can be enabled or disabled by setting the WDTEN bit in the WDT control register. The WDT timeout period can be set to 16ms, 32ms, 64ms, or 128ms by setting the WDT period select bits in the WDT control register.
  • The internal oscillator in UPC844G2-A is a low-power, low-frequency oscillator that can be used as a clock source for the microcontroller. It is typically used for low-power modes or during reset.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

UPC844G2-A Overview

Use the download button to access the UPC844G2-A schematic symbol, PCB footprint, and 3D model.
