The UPD2415 can handle surge currents up to 100A for 10ms, but it's recommended to derate the current to 50A for continuous operation.
The UPD2415 requires a heat sink with a thermal resistance of 1°C/W or less. Ensure good thermal contact between the device and heat sink, and provide adequate airflow to prevent overheating.
Use a 4-layer PCB with a solid ground plane, and keep the high-current paths short and wide. Avoid routing high-frequency signals near the device, and use a common ground point for the input and output.
The UPD2415 is not designed for high-reliability or safety-critical applications. It's recommended to use a more robust and reliable device, such as a solid-state relay or a power module, for such applications.
Use a metal shield or screen around the device, and ensure good grounding of the shield. Add EMI filters or chokes to the input and output lines, and use twisted pair or shielded cables for signal connections.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UPD2415 Overview

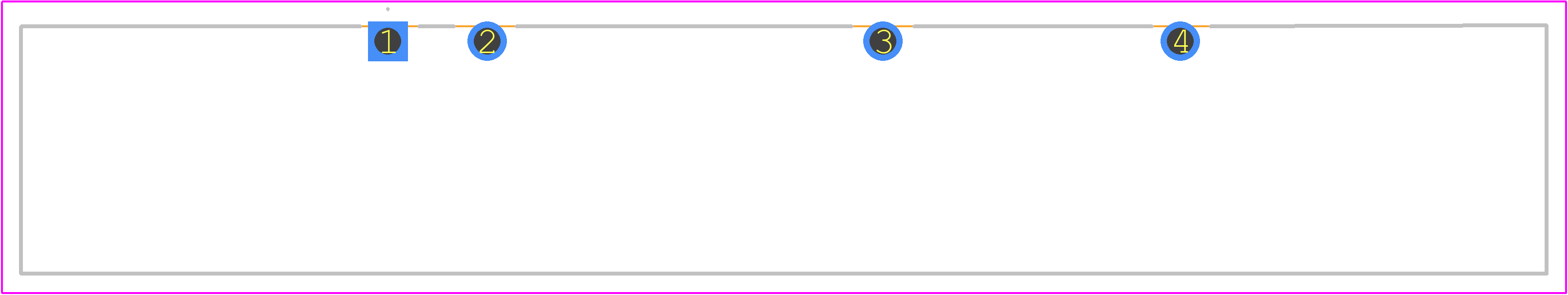

Use the download button to access the UPD2415 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UPD24,
or try a keyword search, such as Solid State Relays
