UPD2415D - CRYDOM

Description: SSR RELAY SPST-NO 15A 24-280V

Download UPD2415D Model

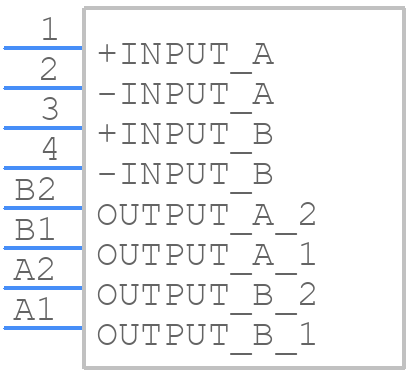

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

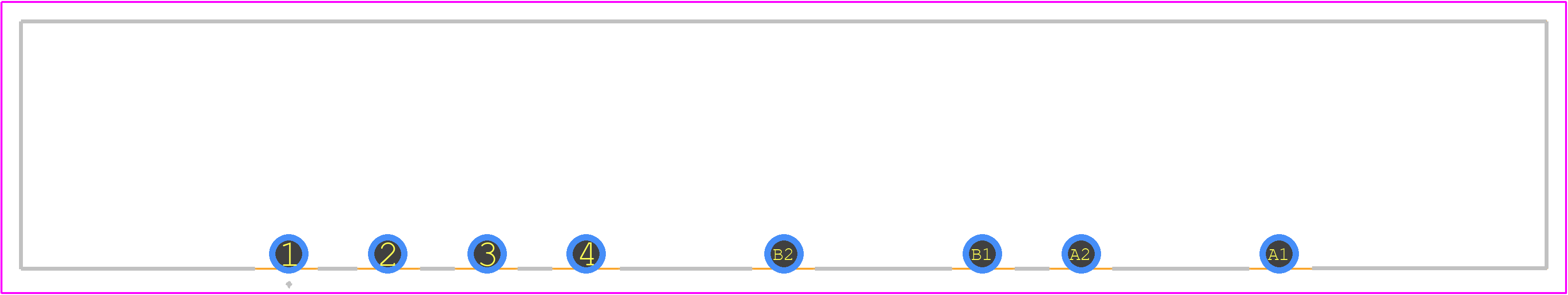

PCB Footprints
UPD2415D - CRYDOM PCB footprint - Other - Other - UPD2415D-2
click to zoom
3D Models
UPD2415D - CRYDOM  - 3D model - Other - UPD2415D-2
click to zoom

UPD2415D Details

  • Manufacturer Part Number:

    UPD2415D

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    SIP-8

  • HTS Code:

    8541.40.95.00

  • Manufacturer:

    Crydom Inc

  • Additional Feature:

    UL RECOGNIZED, ZERO VOLTAGE CROSSING

  • Control Current:

    0.036 A

  • Control Voltage:

    3 V

  • Input Type:

    DC

  • Isolation Voltage-Max:

    2500 V

  • Number of Elements:

    1

  • On-State Current-Max:

    15 A

  • Operating Temperature-Max:

    80 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRIGGER OUTPUT SSR

  • Output Circuit Type:

    Back to Back SCR

  • Overall Height:

    28.45 mm

  • Overall Length:

    78.23 mm
