UPD301B/KYX - Microchip

Description: Stand-alone USB Type-C Power Delivery 3.0 Controller 40-Pin VQFN Tray - Trays

Download UPD301B/KYX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

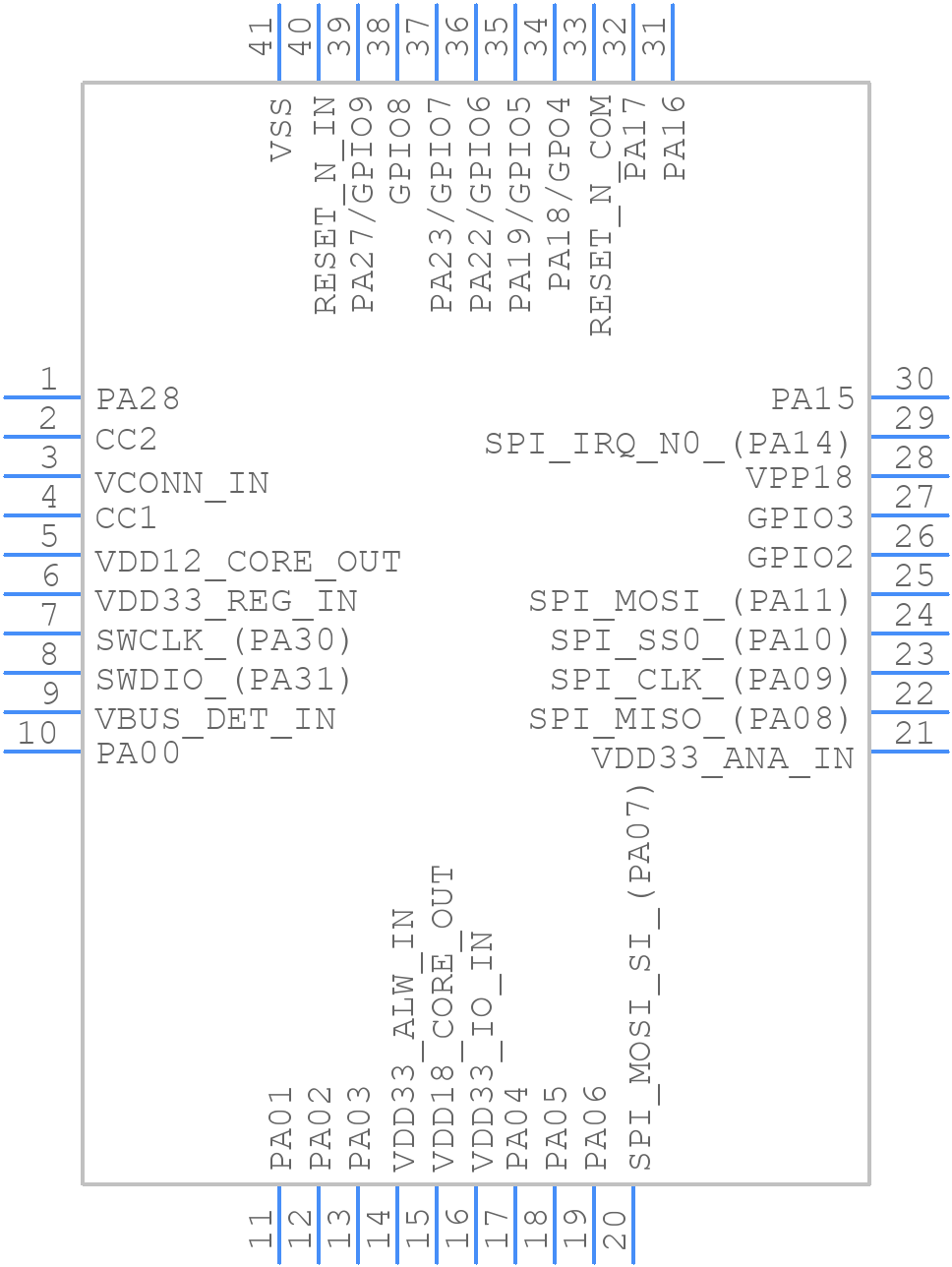

Symbol
UPD301B/KYX - Microchip - PCB symbol
click to zoom
PCB Footprints
UPD301B/KYX - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 40-Lead Very Thin Plastic Quad Flat,No Lead Package (KYX) - 6x6 mm Body [VQFN] With 4.6x4.6 mm
click to zoom
3D Models
UPD301B/KYX - Microchip - 3D model - Quad Flat No-Lead - 40-Lead Very Thin Plastic Quad Flat,No Lead Package (KYX) - 6x6 mm Body [VQFN] With 4.6x4.6 mm
click to zoom
  • Datasheet Download Datasheet
  • Stock & Prices $ Price & Stock for UPD301B/KYX
  • Part Number UPD301B/KYX
  • Manufacturer Microchip
  • Pin Count 41
  • Part Category Integrated Circuit
  • Package Category Quad Flat No-Lead
  • Footprint Name Quad Flat No-Lead - 40-Lead Very Thin Plastic Quad Flat,No Lead Package (KYX) - 6x6 mm Body [VQFN] With 4.6x4.6 mm
  • Released Date Jun 20, 2025
  • Last Modified Date Jun 20, 2025 3:40 AM UTC
  • Pinout / Pin List Click Here (Member Only)

UPD301B/KYX Details

  • Manufacturer Part Number:

    UPD301B/KYX

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    VQFN-40

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Date Of Intro:

    2020-04-13

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    0

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    USB PD CONTROLLER

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.9 mm

  • Supply Current-Max (Isup):

    23.84 mA

  • Supply Voltage-Max (Vsup):

    3.63 V

  • Supply Voltage-Min (Vsup):

    2.97 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +1.58V

  • Width:

    6 mm

UPD301B/KYX Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for UPD301B/KYX is -40°C to +85°C, but it can tolerate storage temperatures from -55°C to +125°C.
  • The UPD301B/KYX can be configured for I2C or SPI mode by setting the MODE pin high or low, respectively, during power-up. For I2C mode, the MODE pin should be connected to VCC, and for SPI mode, it should be connected to GND.
  • The UPD301B/KYX supports clock frequencies up to 10 MHz in I2C mode and up to 20 MHz in SPI mode.
  • The HOLD pin should be kept high during power-up and power-down sequences to prevent the device from entering a low-power state. It's recommended to connect the HOLD pin to VCC through a pull-up resistor.
  • The WP (Write Protect) pin is used to protect the device from accidental writes. When the WP pin is low, the device is in write-protect mode, and any write attempts will be ignored. To enable write operations, the WP pin should be set high.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

UPD301B/KYX Overview

Use the download button to access the UPD301B/KYX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UPD30, or try a keyword search, such as Power Management Circuits

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
